ATS-3020.Auto CNC router
This is an improved model of the ATS-3020 CNC machine. The main difference between the machines is the type of working spindle.
The ATS-3020 CNC machine is equipped with a spindle with manual tool change between operations, which requires the attention of the machine operator. On the contrary, the ATS-3020.Auto machine operates automatically. When creating a control program, the operator or engineer immediately defines the type and number of tools needed to perform milling.
While operating, the machine automatically changes and measures the length of each tool as specified in the control program. This is a very convenient and effective feature often used for CNC machines. One of the advantages of machines with automatic tool change is the speed of changing working tools (video).
-
Quality components
During the production of CNC machines, we use only high-quality brand components. They guarantee the accuracy, reliability and long-term operation of CNC routers
-
Professional production
During the existence of the company, we have established ourselves as a professional production that is actively developing and working on the modernization of equipment and the creation of new models of machines
-
Reliable spindle
Our machines use high-quality spindles from the world’s leading manufacturers with liquid and air cooling. They ensure the accuracy of material processing
-
Simple controls
CNC machines are easy to use and have an intuitive interface and control system that allows you to quickly and efficiently meet your production goals
-
Software
We use exclusively professional and licensed software that guarantees efficient machine control and minimizes the risk of malfunctions
-
Service
We provide expert advice and assistance in selecting equipment for your needs and commissioning works. We also ensure the best terms for training and CNC machine maintenance
-
Guarantee
The guarantee for all CNC machines is one year. We also provide post-warranty technical support and equipment maintenance throughout our machines’ period of operation
-
Industrial manufacturing
Manufacturing of CNC machine tools takes place at our production base using precise equipment and careful observance of all the processes and standards of machine tool construction
Information
Information
The ATS-3020.Auto machine is an advancement of the ATS-3020 model towards increased automation due to installing an automatic tool change system. This machine allows the use of the “Nesting” cutting technology.
Advantages of the model
- High productivity
- Additional options
- Sturdy construction
- Fast and reliable operation
- User-friendly control system
Worktable size
Y-3100, X-2100, Z-200*
Possible increase of Z-axis travel up to 300 mm
Materials that can be processed
- Wood (timber, plywood, MDF, particle board, birch, walnut, etc.)
- Plastics (acrylic, Plexiglas, polycarbonate)
- Composite materials (Dibond and Alucobond)
- Soft metals (aluminum, brass, copper)
Application areas
- Furniture production
- Production of 3D decorations
- Outdoor advertising production
- Model building
- Jewelry production
- Making press molds
Construction
The machine’s solid welded frame is made of steel profile tubes. The portal supports are made of cast iron to avoid excessive vibrations during processing. To ensure the quality of the machine parts, they are processed on modern CNC metalworking equipment.
A modern industrial CNC controller operates the machine.
Оptions
Specifications
Table work area (Y×X)
3100×2100 mm
Axes travel (Y×X×Z)
3100×2100×200 mm
Machine dimensions (L×W×H)
3900×2700×1700 mm
Machine weight
1200 кg
Machine type
CNC router
Construction
Moving gantry
Spindle nut to table clearance
200 mm
Gantry clearance
200 mm
Worktable with mechanical workpiece fixturing
Profiled aluminum (T-slot)
Linear guide rails
Precision linear guideway
Z axis feed:
Ball screw drive
X, Y axes feed
Helical rack
Reducer type of X, Y axes
Toothed belt
X, Y, Z axes motors
Stepper motor
Maximum traverse speed, axis Z
6 m/min
Maximum traverse speed, axes X,Y
20 m/min
Work feed rate up to
15 m/min
Spindle power
7.5 кW
Spindle speed
6 000-24 000 rpm
Spindle cooling type
Air
Tool change
Automatic
Tool magazine type
Linear
Tool holder type
ISO30
Tool magazine size
from 4 pcs
Collet type
ER32
Maximum Ø of shank
20 mm
Tool length measurement sensor type
Contact
Limit switches
Inductive
Control system (CNC)
NC60A
Programming language
G-Code
Dust collection port Ø
100 mm
Recommended dust collection performance
3200 m3/hour
Power requirements
380 В, 50 Hz
Maximum power consumption
10 кW
FAQ
Do you conduct machine installation and training?
Yes, we do. Upon the client’s request, our specialists perform installation work and provide training on the basics of machine operation and creating toolpaths.
Can you increase the number of tools in the tool magazine?
The base configuration of a CNC machine includes four interchangeable tools in the tool magazine. We can increase the tool magazine size up to twelve tools without any structural modifications. However, a change in the linear magazine’s layout is required to accommodate even more tools.
What kind of compressor is necessary for a CNC machine?
An additional compressor is required for machines with automatic tool change. For stable and proper operation, a compressor capable of maintaining pressure at the machine’s input of 8-10 bar and having a productivity of 420 normal litres per minute is necessary. The preferred volume of the compressor’s receiver should be at least 200 litres.
Which ATC spindle should I choose?
Our company uses spindles from both Italian and Chinese manufacturers in machines with automatic tool change.
The advantages of Italian spindles are precision manufacturing, long service life (at least five years), and repairability. The downside of such a spindle is its high cost.
The advantage of Chinese spindles is their low cost, while the downside is their shorter service life compared to Italian manufacturers.
What should I choose: stepper motors or servo motors?

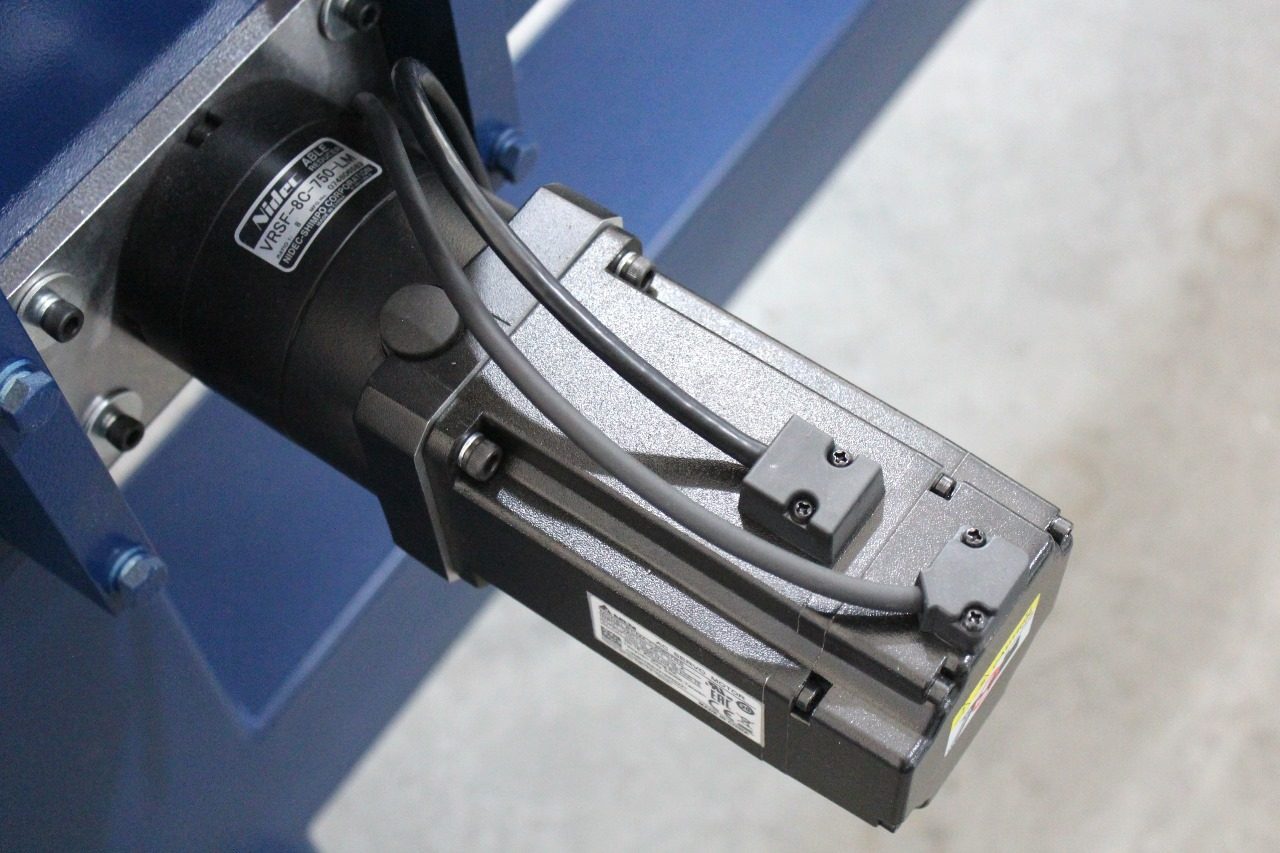

Stepper motors offer a low-cost solution, the ability to operate at low speeds without deteriorating performance, and, most importantly, precise positioning and good tolerance to mechanical loads, instilling confidence in the quality of your choice. The advantages of servo motors are precise movement, quiet operation, high acceleration, long service life, and smooth motion. Therefore, the choice between servo motors and stepper motors as the feed drives for a CNC machine should be made based solely on economic and technical feasibility. For more information on the principles of operation of stepper and servo motors, you can read ->here<-
What CAM software should be used for "Nesting" technology?
Any software that supports saving the control program in G-code format can be used. For example: VCarve Pro, Aplhacam, NESTINGWorks, SigmaNest, VisualCAM, PowerShape/Mill, Fusion360 with Nesting AddOn, and others.
For “Nesting” technology, our company uses VCarve Pro software from Vectric.
Is the vacuum pump sufficient to hold the workpiece?
The ATS-3020 machine’s vacuum table is equipped with a vacuum pump with a power of 5.5 kW, a maximum capacity of 320 m3/h, and a maximum discharge of 440 mbar. The pump’s high productivity, combined with a specially designed vacuum table construction, ensures quality and reliable workpiece clamping..
How do you create toolpaths for the machine?
Various CAM software allows the creation of toolpaths, such as V-Carve, ArtCAM, Rhinoceros, Deskproto, etc.
We recommend considering using toolpath generation features within CAM software. We also offer a comprehensive training course on how to utilize these toolpath features effectively.
Get New Quote Today
The machine can be produced in various modifications and equipped with options of your choice.
We can help you choose the optimal machine for your projects. Get Pricing Info & Have Our Machine Quick Reference Guide E-Mailed To You Today!
