A four-axis machine with automatic tool change, which is capable of processing radius furniture facades of various shapes, as well as performing face milling and drilling.

  • Quality components

    During the production of CNC machines, we use only high-quality brand components. They guarantee the accuracy, reliability and long-term operation of CNC routers

  • Professional production

    During the existence of the company, we have established ourselves as a professional production that is actively developing and working on the modernization of equipment and the creation of new models of machines

  • Reliable spindle

    Our machines use high-quality spindles from the world’s leading manufacturers with liquid and air cooling. They ensure the accuracy of material processing

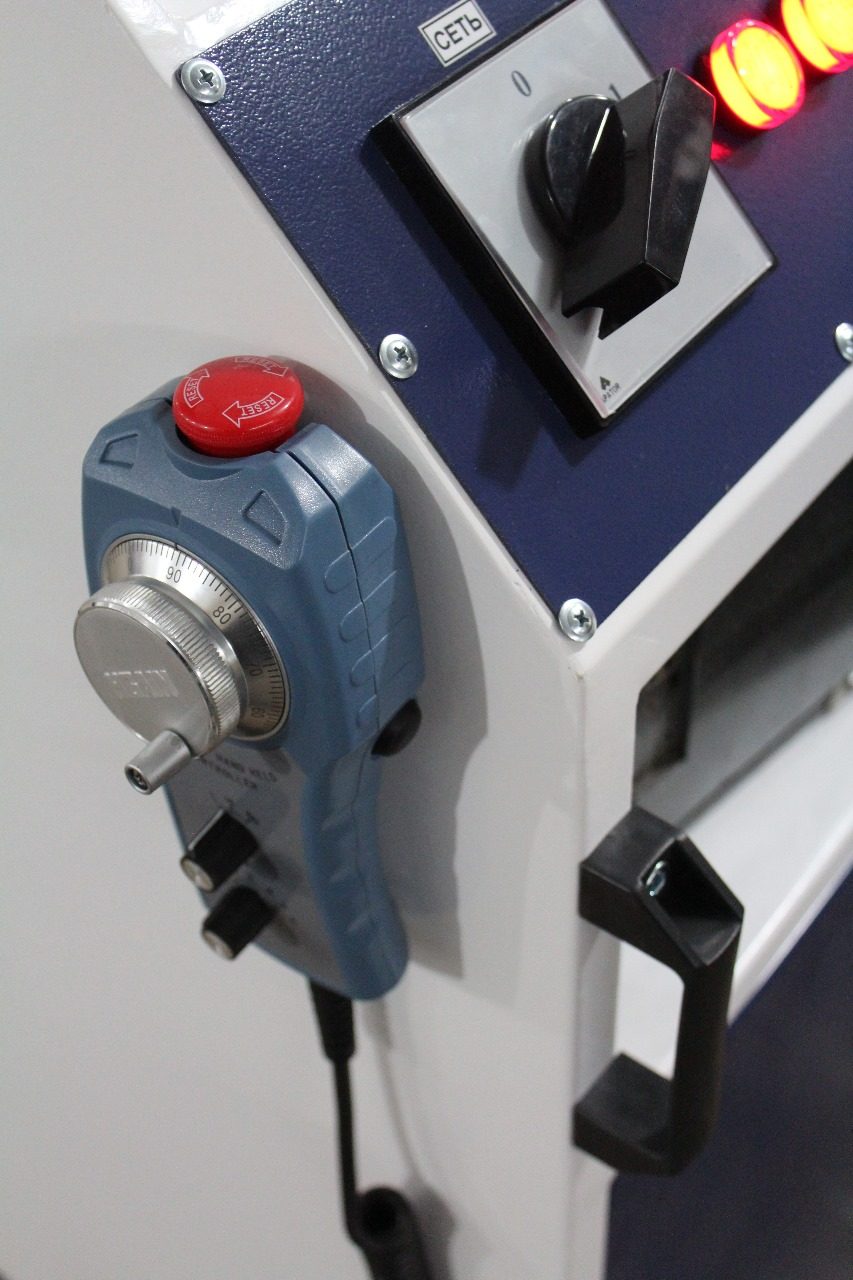

  • Simple controls

    CNC machines are easy to use and have an intuitive interface and control system that allows you to quickly and efficiently meet your production goals

  • Software

    We use exclusively professional and licensed software that guarantees efficient machine control and minimizes the risk of malfunctions




  • Service

    We provide expert advice and assistance in selecting equipment for your needs and commissioning works. We also ensure the best terms for training and CNC machine maintenance

  • Guarantee

    The guarantee for all CNC machines is one year. We also provide post-warranty technical support and equipment maintenance throughout our machines’ period of operation



  • Industrial manufacturing

    Manufacturing of CNC machine tools takes place at our production base using precise equipment and careful observance of all the processes and standards of machine tool construction

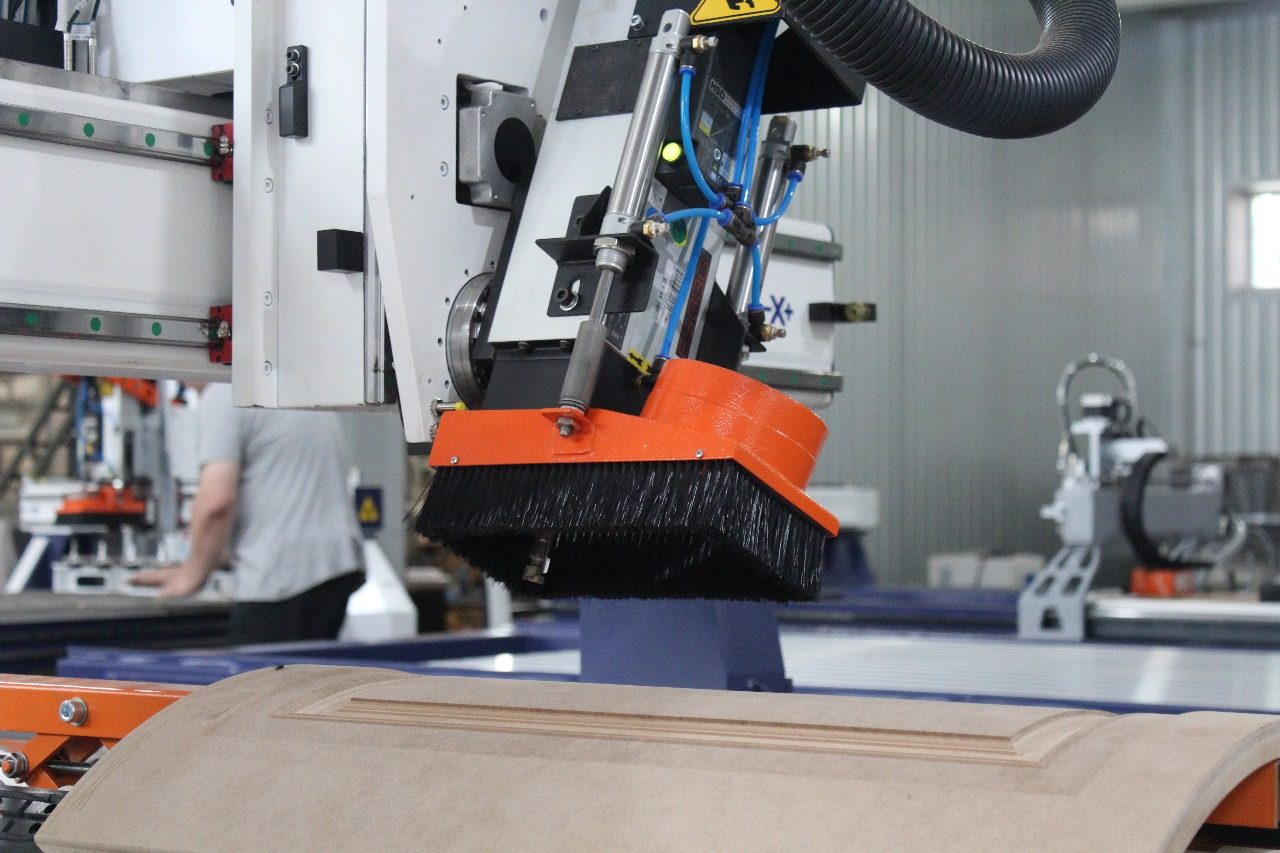

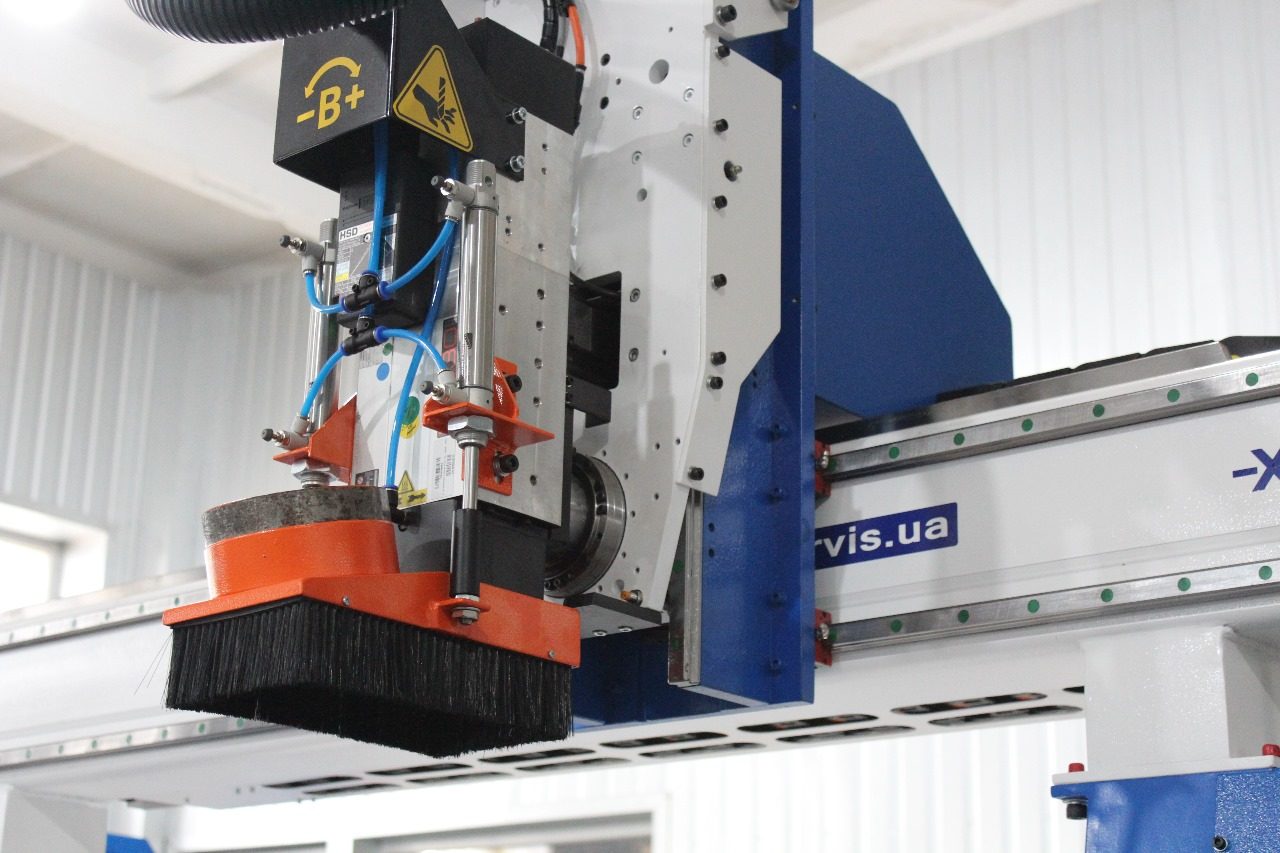

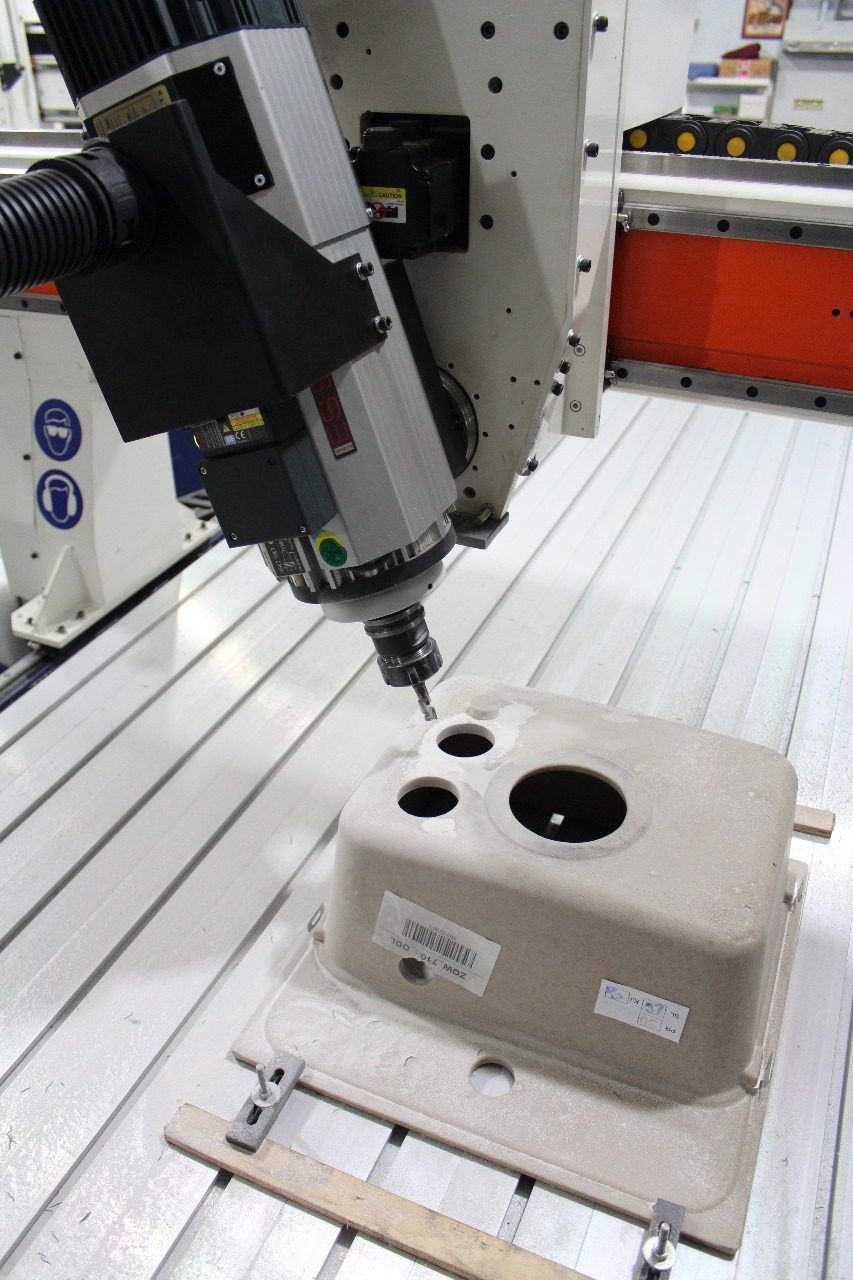

The ATS-2513.4D machine stands out with its unique feature of controlling the spindle tilt. This feature significantly expands its application range, making it a versatile tool for processing complex furniture shapes and architectural elements.

Advantages of the model

  • Spindle tilt axis
  • High productivity
  • Additional options
  • Sturdy construction
  • Fast and reliable operation
  • User-friendly control system

Worktable size

Y-2500, X-1300, Z-380*

*Possible increase of Z-axis travel up to 500 mm

Materials that can be processed

  • Wood (timber, plywood, MDF, particle board, birch, walnut, etc.)
  • Plastics (acrylic, Plexiglas, polycarbonate)
  • Composite materials (Dibond and Alucobond)
  • Soft metals (aluminum, brass, copper)

Application areas

  • Furniture production
  • Production of 3D decorations
  • Outdoor advertising production
  • Model building
  • Production of commercial equipment
  • Making press molds


The machine’s solid welded frame is made of steel profile tubes. The portal supports are made of cast iron to avoid excessive vibrations during processing. To ensure the quality of the machine parts, they are processed on modern CNC metalworking equipment.

A modern industrial CNC controller operates the machine.

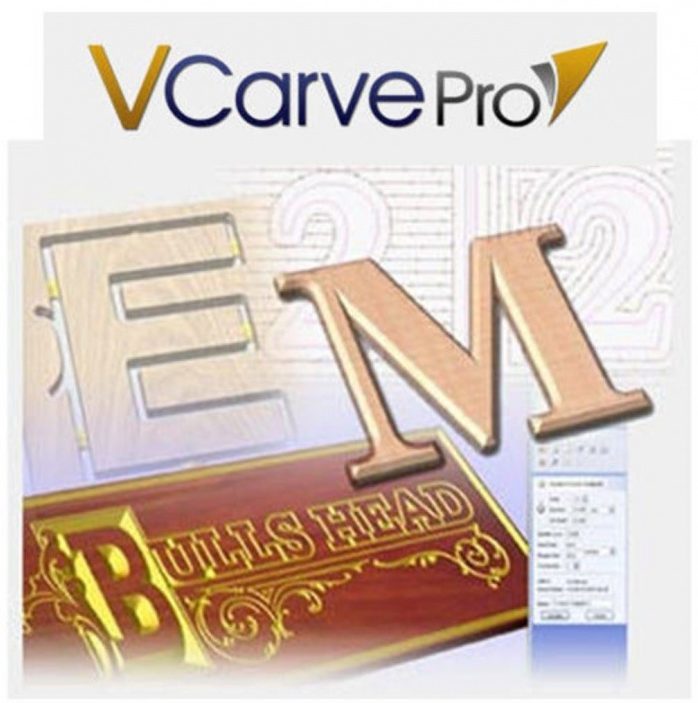

VCarve Pro software

The VCarve Pro software offers various tools and options for creating control programs for CNC machines, including cutting, milling, engraving, and processing of flat and three-dimensional surfaces.

Vacuum Table

A matrix table made of impact-resistant composite material and a powerful vacuum pump will ensure reliable fastening of sheet materials. Additionally, it can be equipped with integrated T-slots for combined fastening of processed workpieces.

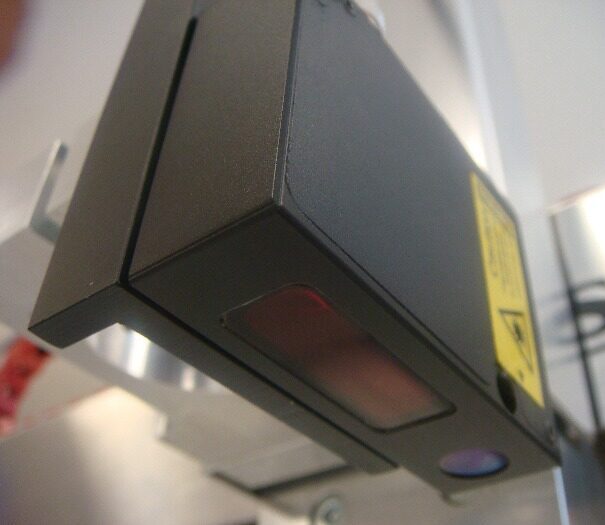

HSC "ScanFasad"

This system is designed to scan curved surfaces fast and precisely for further milling. It helps minimize errors during milling and efficiently saves time when producing curved and contoured furniture facades.

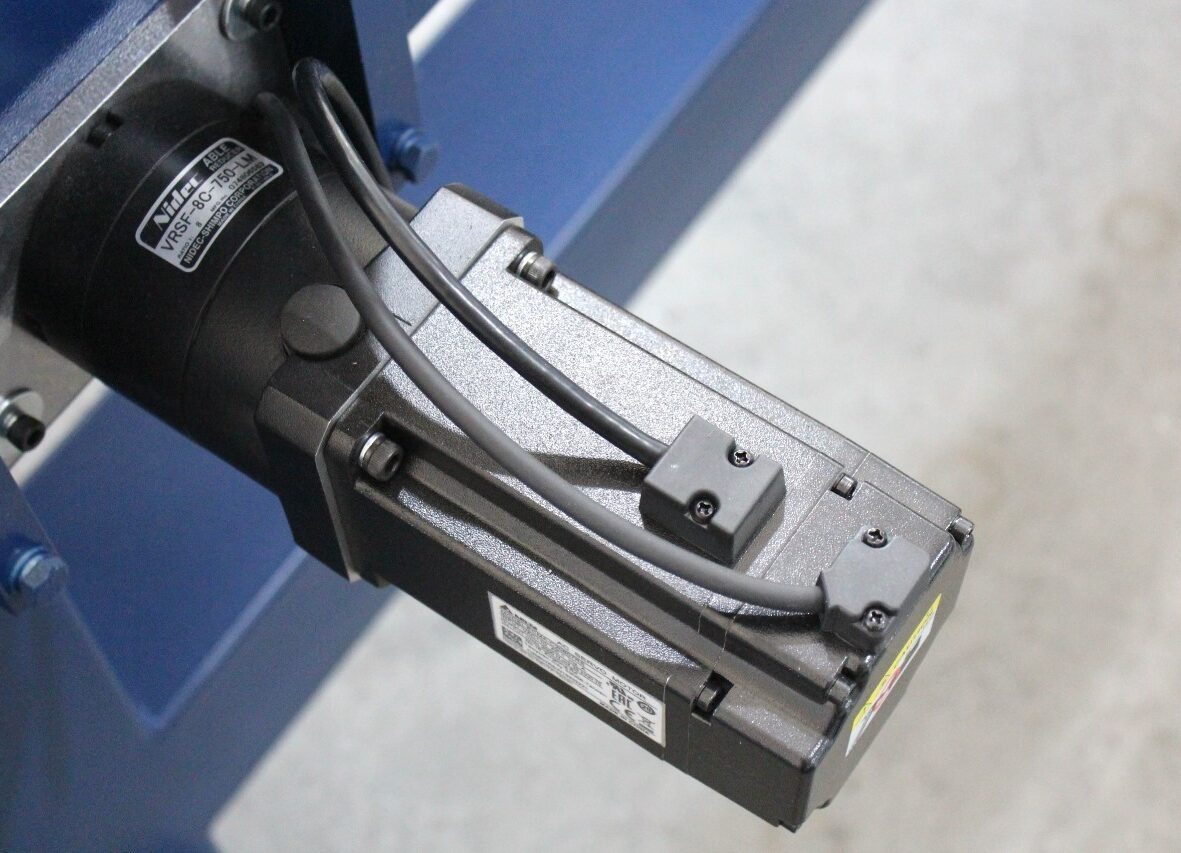

Replacing Stepper Motors with Servo Motors

Compared to stepper motors, servo motors provide greater speed and smoother operation of the machine. This option is recommended if the main requirement is high productivity of the machine.

Extraction system

The primary purpose of the system is to remove dust, smoke, gases, and harmful substances generated during laser cutting. This system may also include extraction devices, filters, fans, and other components to maintain a clean and safe air environment in the working area.

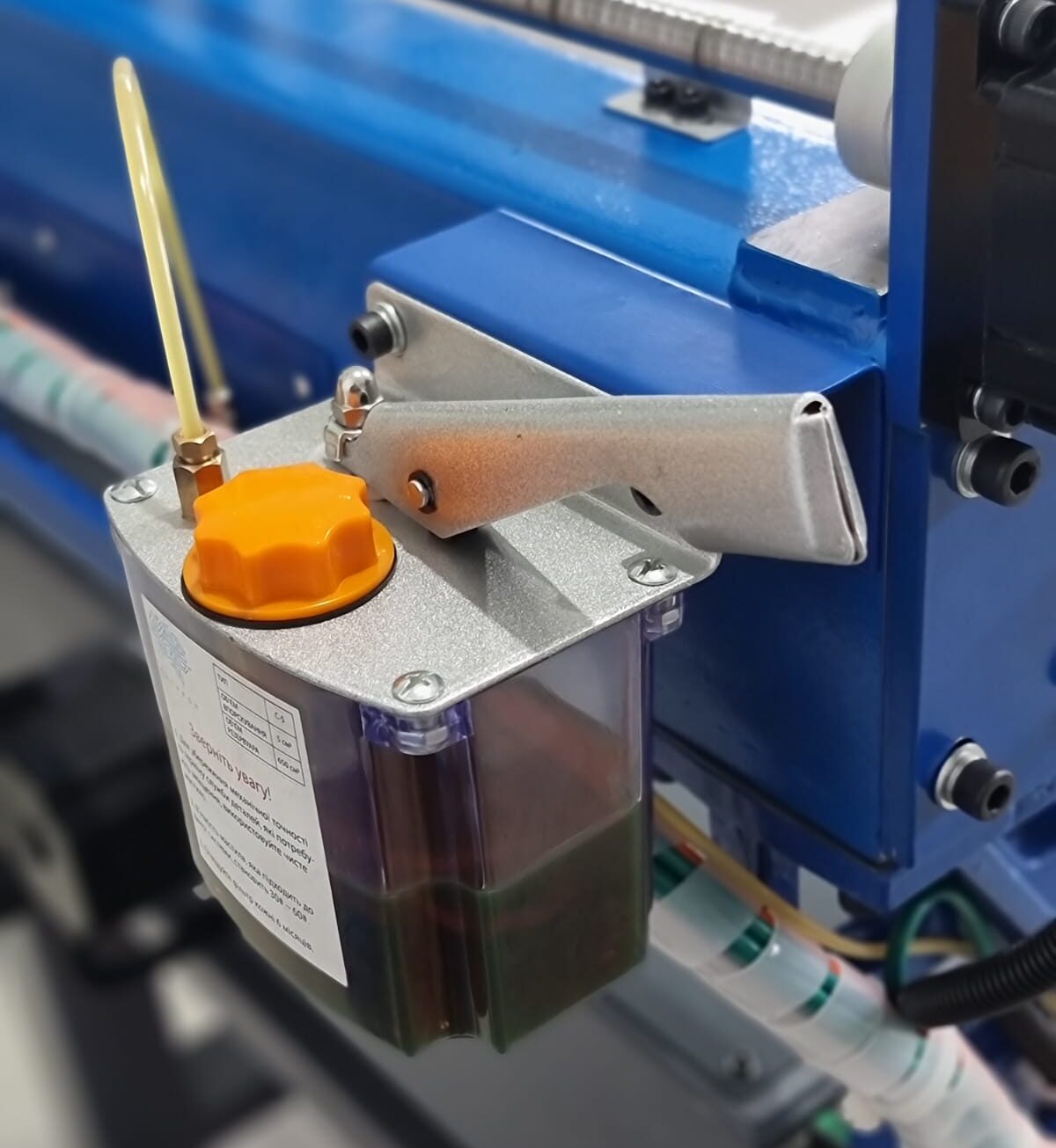

Centralized Lubrication System

It provides convenient machine maintenance by allowing quick lubrication of all necessary components. A manual control pump supplies lubricant material.


Table work area (Y×X)

2500×1300 mm

Axes travel (Y×X×Z)

2500×1300×380 mm

Machine dimensions (L×W×H)

3400×2100×2300 mm

Machine weight

1200 кg

Machine type

CNC router


Moving gantry

Spindle nut to table clearance

380 mm

Gantry clearance

380 mm

Worktable with mechanical workpiece fixturing

Profiled aluminum (T-slot)

Linear guide rails

Precision linear guideway

Z axis feed:

Ball screw drive

X, Y axes feed

Helical rack

Reducer type of X, Y axes

Toothed belt

Type of reducer, axis B

Harmonic drive

X, Y, Z axes motors

Stepper motor

Maximum traverse speed, axis Z

6 m/min

Maximum traverse speed, axes X,Y

20 m/min

Work feed rate up to

15 m/min

Spindle power

4.1 кW

Spindle tilt angle, axis B

± 90º

Spindle speed

6 000-24 000 rpm

Spindle cooling type


Tool change


Tool magazine type


Tool holder type


Tool magazine size

from 4 pcs

Collet type


Maximum Ø of shank

20 mm

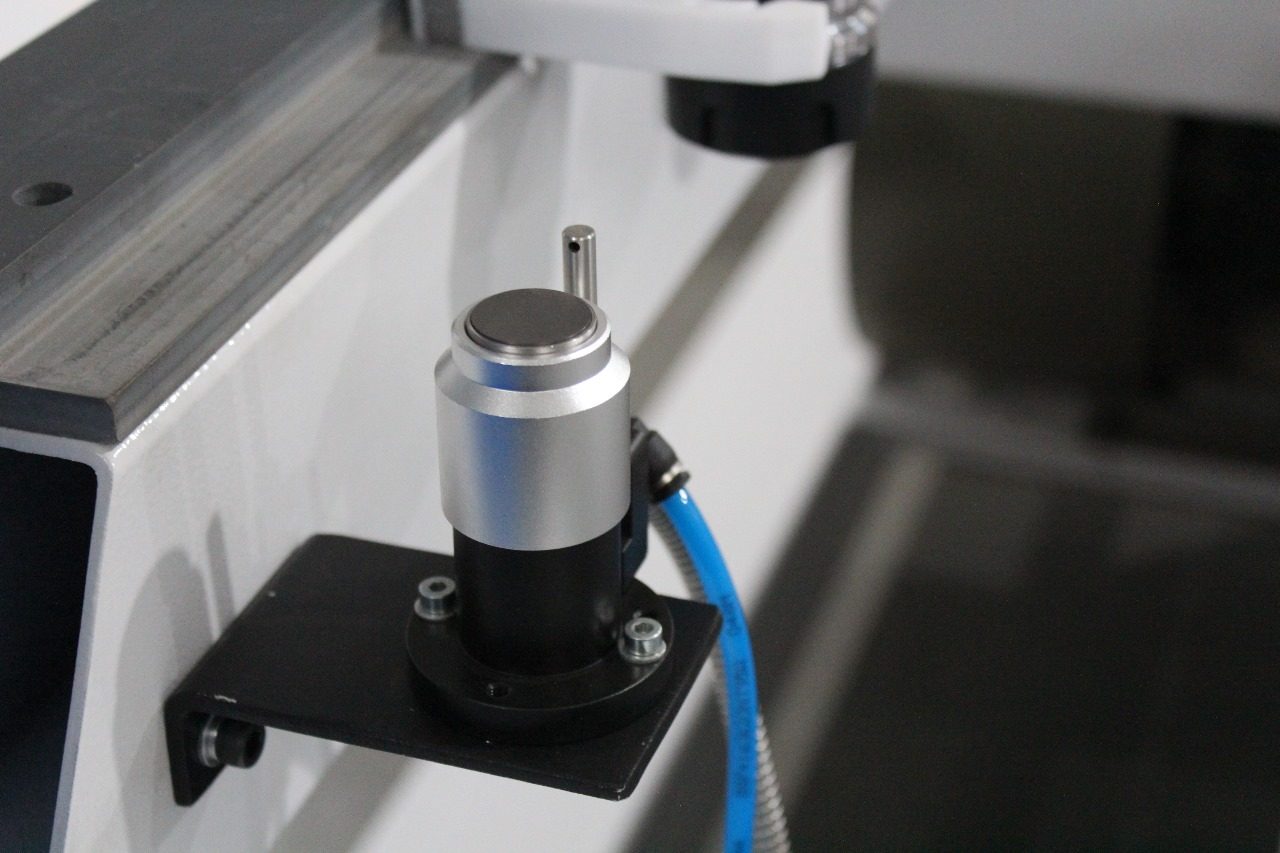

Tool length measurement sensor type


Limit switches


Control system (CNC)


Programming language


Dust collection port Ø

100 mm

Recommended dust collection performance

2200 m3/hour

Power requirements

380/220 V, 50 Hz

Maximum power consumption

5 кW


Do you conduct machine installation and training?

Yes, we do. Upon the client’s request, our specialists perform installation work and provide training on the basics of machine operation and creating toolpaths.

Can you increase the number of tools in the tool magazine?

The base configuration of a CNC machine includes four interchangeable tools in the tool magazine. We can increase the tool magazine size up to seven tools without any structural modifications. However, a change in the linear magazine’s layout is required to accommodate even more tools.

Does the control system support the RTCP (Rotate Tool Center Point) function?

The control system supports the RTCP (Rotate Tool Center Point) function. The RTCP function utilizes the machine’s kinematics and tool length to calculate the necessary axis movements to ensure that the tooltip remains at a constant position when the B-axis is moved manually or according to the toolpath. This allows for easy tool length adjustment without updating toolpaths, increases reliability by reducing human errors, significantly reduces setup time, and simplifies the process of creating toolpaths using CAM or manual G-code programming.


What type of reducer is used for the B-axis?

A harmonic drive reducer, manufactured by a Taiwanese company according to our specifications, is used to rotate the spindle. This reducer is an important component of machines with tilting spindles. Its accuracy is not less than one arc minute.

How many simultaneously controlled axes does the machine have?

The ATS-2513.4D.Auto is a 4-axis CNC machine. This series of machines is equipped with a full-fledged 4-axis controller capable of controlling all four axes simultaneously.

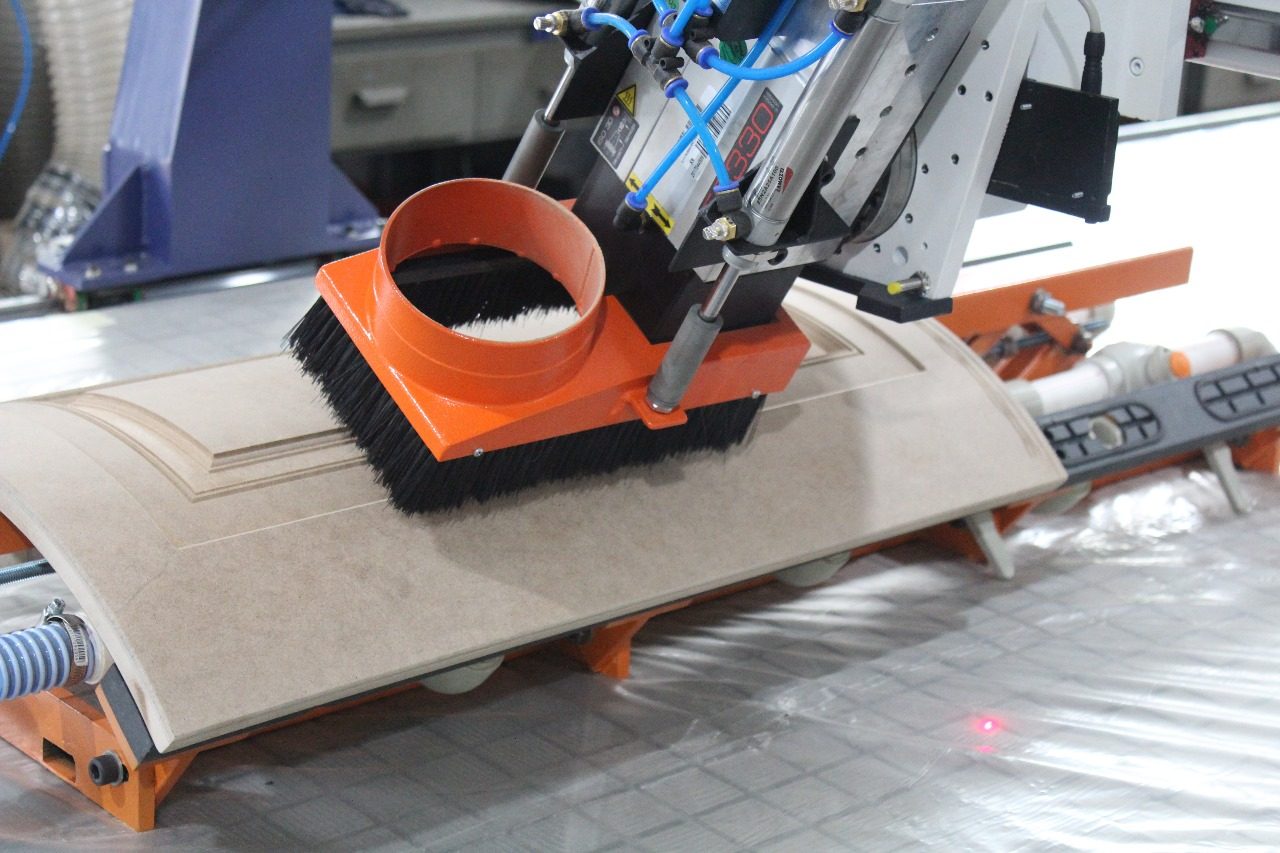

Do you have a fixture for curved furniture fronts?

Yes, we have developed specialized fixtures for curved furniture fronts. This equipment is universal and does not require effort to fix the workpiece, as it has a vacuum fixation system. This system allows the processing of MDF fronts of various shapes and radii.

What kind of compressor is necessary for a CNC machine?

An additional compressor is required for machines with automatic tool change. For stable and proper operation, a compressor capable of maintaining pressure at the machine’s input of 8-10 bar and having a productivity of 420 normal litres per minute is necessary. The preferred volume of the compressor’s receiver should be at least 200 litres.

Is a PC required for the machine?

An industrial computer controls CNC machines with automatic tool change, which is integrated into the machine’s control system. Therefore, a PC is not required for such machines.
