EdgeCut

A CNC machine that combines milling and cutting technologies with the use of a tangential oscillating knife, which makes it unique compared to other models of CNC machines

  • Quality components

    During the production of CNC machines, we use only high-quality brand components. They guarantee the accuracy, reliability and long-term operation of CNC routers

  • Professional production

    During the existence of the company, we have established ourselves as a professional production that is actively developing and working on the modernization of equipment and the creation of new models of machines

  • Reliable spindle

    Our machines use high-quality spindles from the world’s leading manufacturers with liquid and air cooling. They ensure the accuracy of material processing

  • Simple controls

    CNC machines are easy to use and have an intuitive interface and control system that allows you to quickly and efficiently meet your production goals

  • Software

    We use exclusively professional and licensed software that guarantees efficient machine control and minimizes the risk of malfunctions







  • Service

    We provide expert advice and assistance in selecting equipment for your needs and commissioning works. We also ensure the best terms for training and CNC machine maintenance

  • Guarantee

    The guarantee for all CNC machines is one year. We also provide post-warranty technical support and equipment maintenance throughout our machines’ period of operation





  • Industrial manufacturing

    Manufacturing of CNC machine tools takes place at our production base using precise equipment and careful observance of all the processes and standards of machine tool construction

Information

Information

In addition to the spindle, EdgeCut is equipped with a tangential oscillating knife. This tool allows for cutting soft foam materials, fabrics, and corrugated cardboard

Advantages of the model

  • Tangential oscillating knife
  • High productivity
  • Additional options
  • Sturdy construction
  • Fast and reliable operation
  • User-friendly control system

Worktable size

Y-2500, X-1300, Z-200

Materials that can be processed

  • Foam materials (EVA, foam rubber)
  • Cardboard (packaging, corrugated)
  • Wood (timber, plywood, MDF, particle board, birch, walnut, etc.)
  • Plastics (acrylic, Plexiglas, polycarbonate)
  • Composite materials (Dibond and Alucobond)

Application areas

  • Packaging manufacturing
  • Outdoor advertising production
  • Souvenir production
  • Production of 3D decorations

Construction

The machine’s solid welded frame is made of steel profile tubes. The portal supports are made of cast iron to avoid excessive vibrations during processing. To ensure the quality of the machine parts, they are processed on modern CNC metalworking equipment.

A modern industrial CNC controller operates the machine

Оptions

VCarve Pro software

The VCarve Pro software offers various tools and options for creating control programs for CNC machines, including cutting, milling, engraving, and processing of flat and three-dimensional surfaces.

Vacuum Table

A matrix table made of impact-resistant composite material and a powerful vacuum pump will ensure reliable fastening of sheet materials. Additionally, it can be equipped with integrated T-slots for combined fastening of processed workpieces.

Additional cutting modules

The tangential knife module is used to fast cut thin materials. An additional creasing wheel module needs to be installed to apply fold lines.

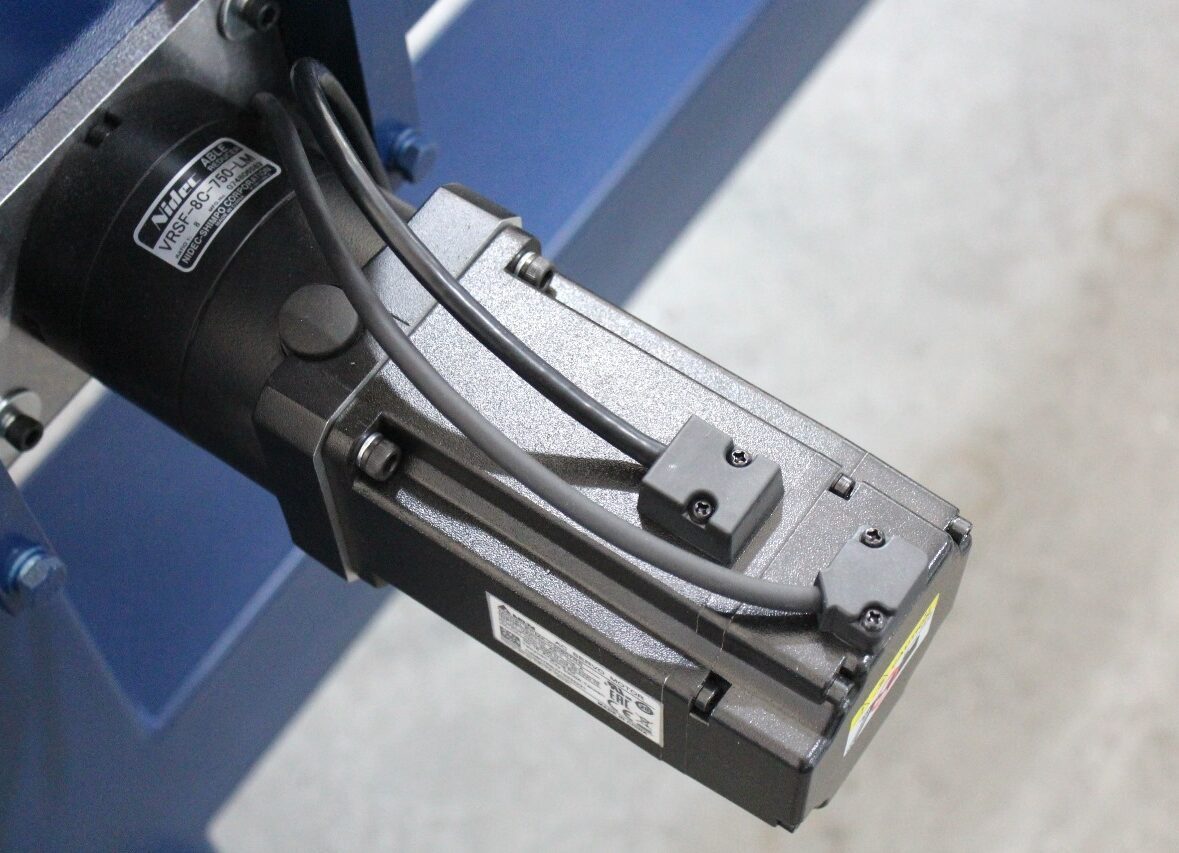

Replacing Stepper Motors with Servo Motors

Compared to stepper motors, servo motors provide greater speed and smoother operation of the machine. This option is recommended if the main requirement is high productivity of the machine.

Extraction system

The primary purpose of the system is to remove dust, smoke, gases, and harmful substances generated during laser cutting. This system may also include extraction devices, filters, fans, and other components to maintain a clean and safe air environment in the working area.

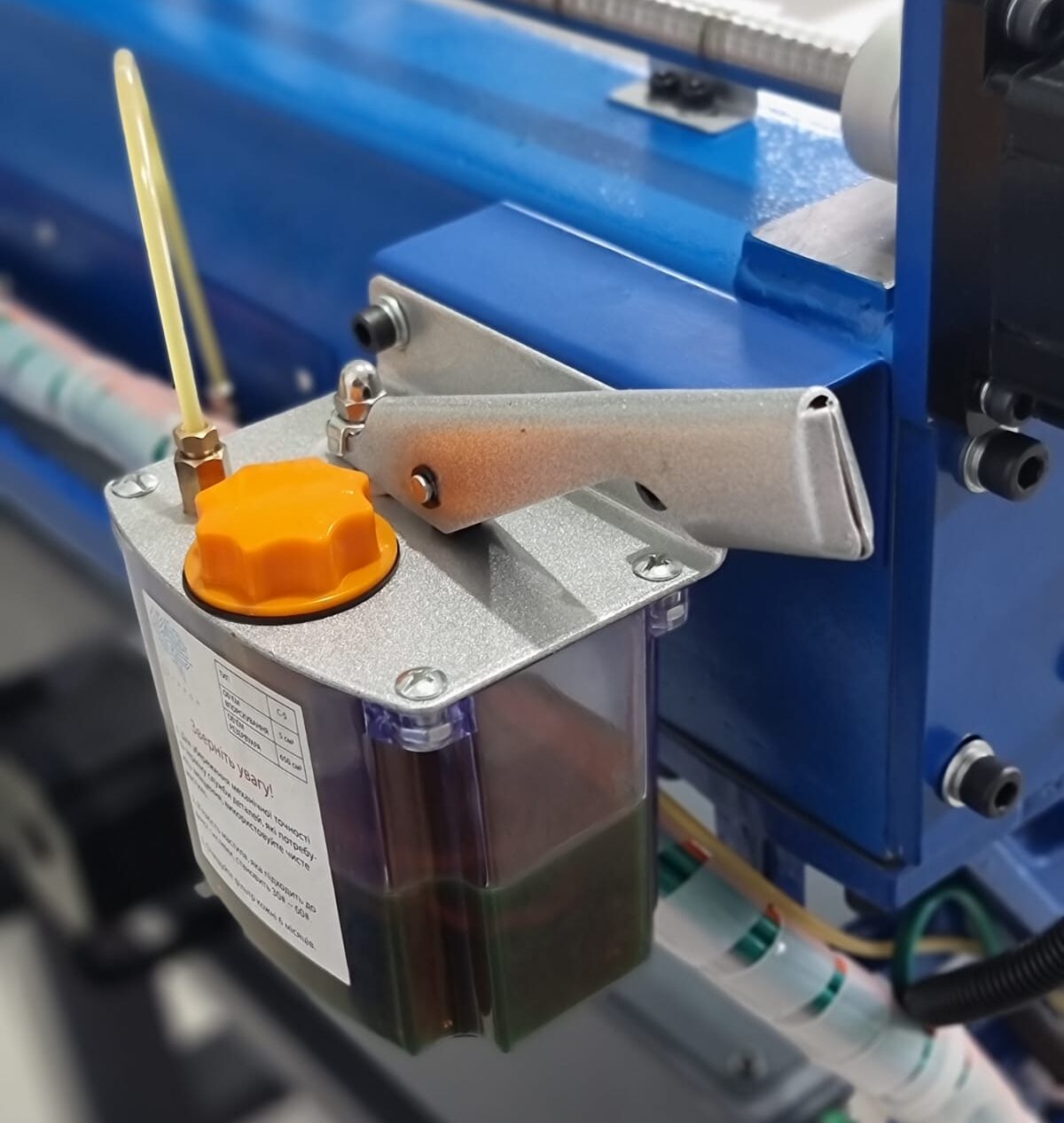

Centralized Lubrication System

It provides convenient machine maintenance by allowing quick lubrication of all necessary components. A manual control pump supplies lubricant material.

Specifications

Table work area (Y×X)

2500×1300 mm

Axes travel (Y×X×Z)

2500×1300×200 mm

Machine dimensions (L×W×H)

3100×1900×1700 mm

Machine weight

900 кg

Machine type

CNC router with a tangential oscillating

Construction

Moving gantry

Spindle nut to table clearance

200 mm

Gantry clearance

200 mm

Worktable with mechanical workpiece fixturing

Profiled aluminum (T-slot)

Linear guide rails

Precision linear guideway

Z axis feed:

Ball screw drive

X, Y axes feed

Helical rack

Reducer type of X, Y axes

Toothed belt

X, Y, Z axes motors

Stepper motor

Maximum traverse speed, axis Z

6 m/min

Maximum traverse speed, axes X,Y

20 m/min

Work feed rate up to

15 m/min

Spindle power

3.5 кW

Spindle speed

6 000-18 000 rpm

Spindle cooling type

Air

Tool change

Manual

Тип цангиCollet type

ER25

Maximum Ø of shank

16 mm

Knife type

Tangential oscillating

Oscillation rate

2000 beats/min

Stroke length

3 mm

Ø of knife shank

6 mm

Tool length measurement sensor type

Contact

Limit switches

Inductive

Control system (CNC)

E-CNC

Programming language

G-Code

Dust collection port Ø

100 mm

Recommended dust collection performance

3200 m3/hour

Power requirements

380 V, 50 Hz

Maximum power consumption

7 кW

FAQ

Do you conduct machine installation and training?

Yes, we do. Upon the client’s request, our specialists perform installation work and provide training on the basics of machine operation and creating toolpaths.

How do you create toolpaths for the machine?

Various CAM software allows the creation of toolpaths, such as V-Carve, ArtCAM, Rhinoceros, Deskproto, etc. We recommend considering using toolpath generation features within CAM software. We also offer a comprehensive training course on how to utilize these toolpath features effectively.

Is it possible to install a different type of knife?

Our machines have the technical capability to install several different cutting knife types. The default option is the oscillating knife. Additionally, a tangential blade and/or a creasing wheel can be installed.

Can I create toolpaths using both a milling tool and a knife?

The EdgeCut machines are equipped with modern controllers that allow the execution of programs using both a milling cutter and a blade. Such dual-operation programs can be conveniently created in the CAD/CAM system VCarve Pro.

What is the average lifespan of a cutting blade?

The average lifespan of a blade depends on the material being cut and the cutting conditions. The lifespan of materials containing abrasive components, such as abrasive laminates, is relatively low and can be measured in tens of meters. For softer, foam-like materials, the average lifespan can reach hundreds of meters, and with balanced cutting conditions, it can exceed a few kilometres.

What material is used for the spoilboard?

To preserve and extend the lifespan of cutting blades, disposable material must be placed under the workpiece. Our company uses a special material that not only extends the blade’s lifespan but also improves the workpiece’s retention on the vacuum table.

How can I control the vacuum table?

The vacuum table of a CNC machine is divided into several vacuum zones, which can be controlled in two ways:

  1. Mechanical valves on the machine’s front panel open/close the air supply to the vacuum zone. ;
  2.  Electric valves are controlled by pressing the corresponding buttons.
What kind of compressor is necessary for a CNC machine?

An additional compressor is required for machines with automatic tool change. For stable and proper operation, a compressor capable of maintaining pressure at the machine’s input of 8-10 bar and having a productivity of 420 normal litres per minute is necessary. The preferred volume of the compressor’s receiver should be at least 200 litres.
