A large milling machine capable of processing large workpieces.

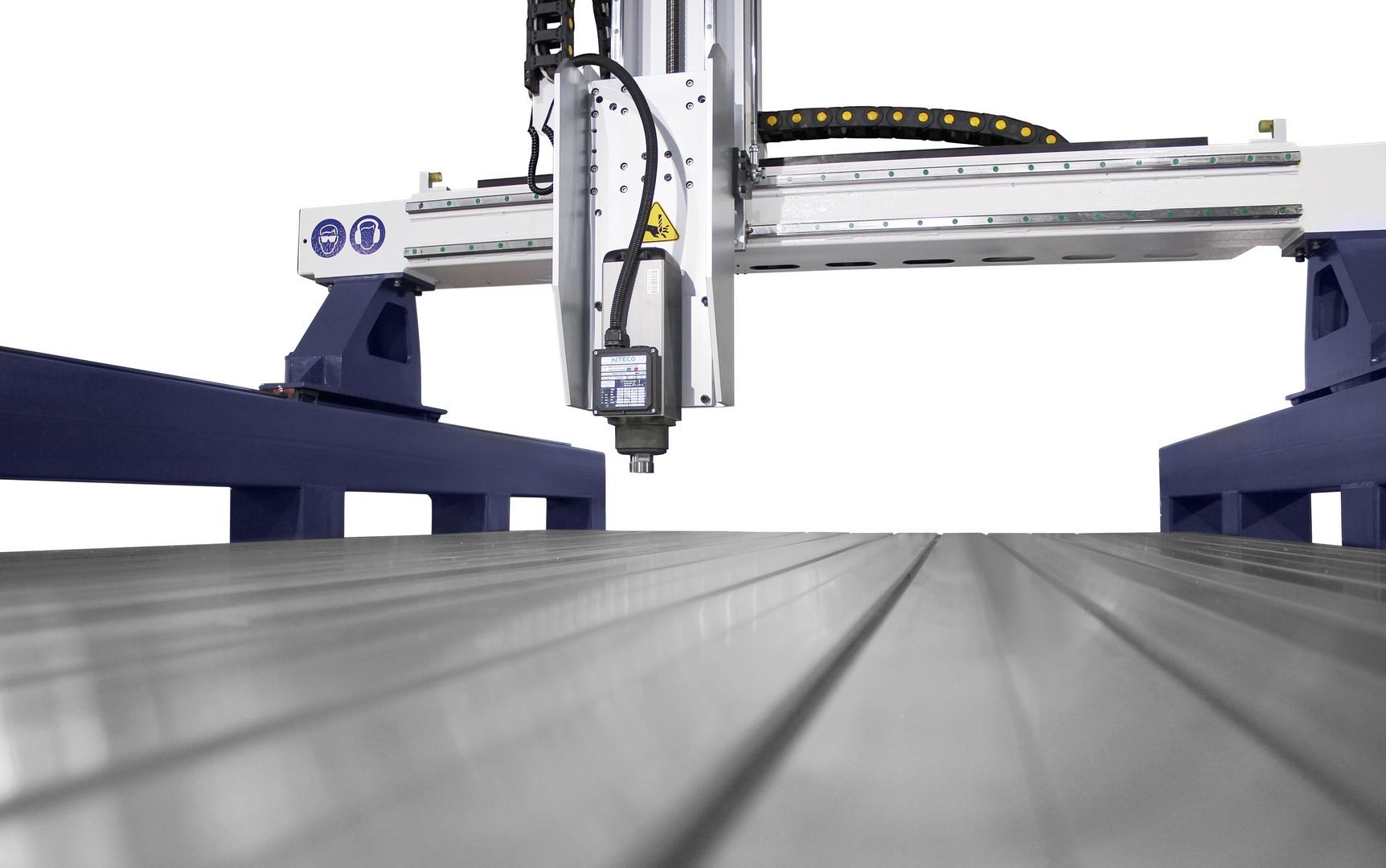

CNC router "ATS-2513.H500"
The machine is one of the modifications of the ATS series CNC routers. Unlike the standard model, this machine has broader characteristics associated with a change in design.
The updated design of the machine allows you to use it for milling three-dimensional parts in 3D space (3D milling), for example, for manufacturing model equipment and products that require a large height stroke. In this version of the machine, a rotary axis can be installed to process workpieces with a large diameter.
The machine “ATS-2513.H500” is widely used to produce model equipment, prototyping, architectural and decorative design of premises.
-
Quality components
During the production of CNC machines, we use only high-quality brand components. They guarantee the accuracy, reliability and long-term operation of CNC routers
-
Professional production
During the existence of the company, we have established ourselves as a professional production that is actively developing and working on the modernization of equipment and the creation of new models of machines
-

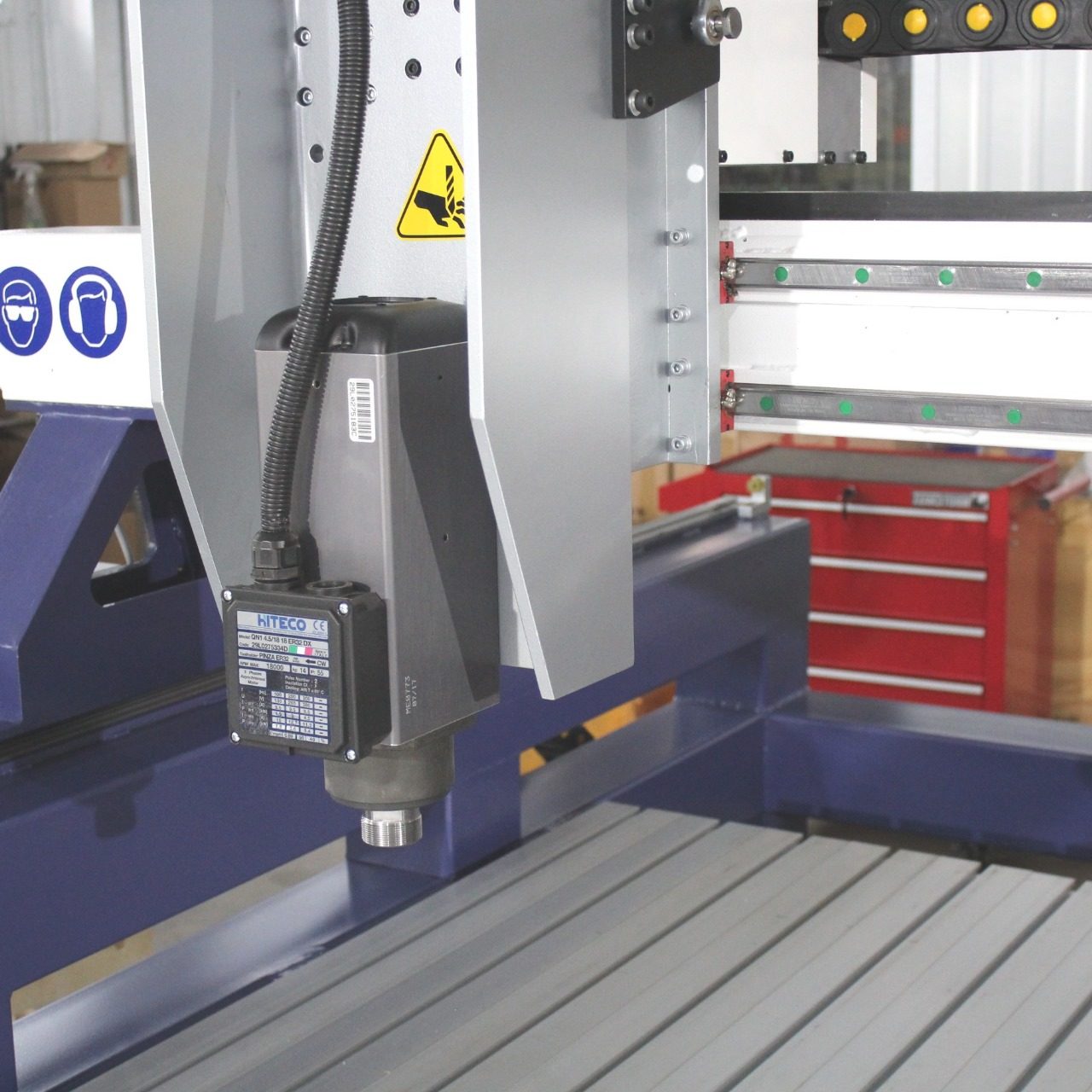

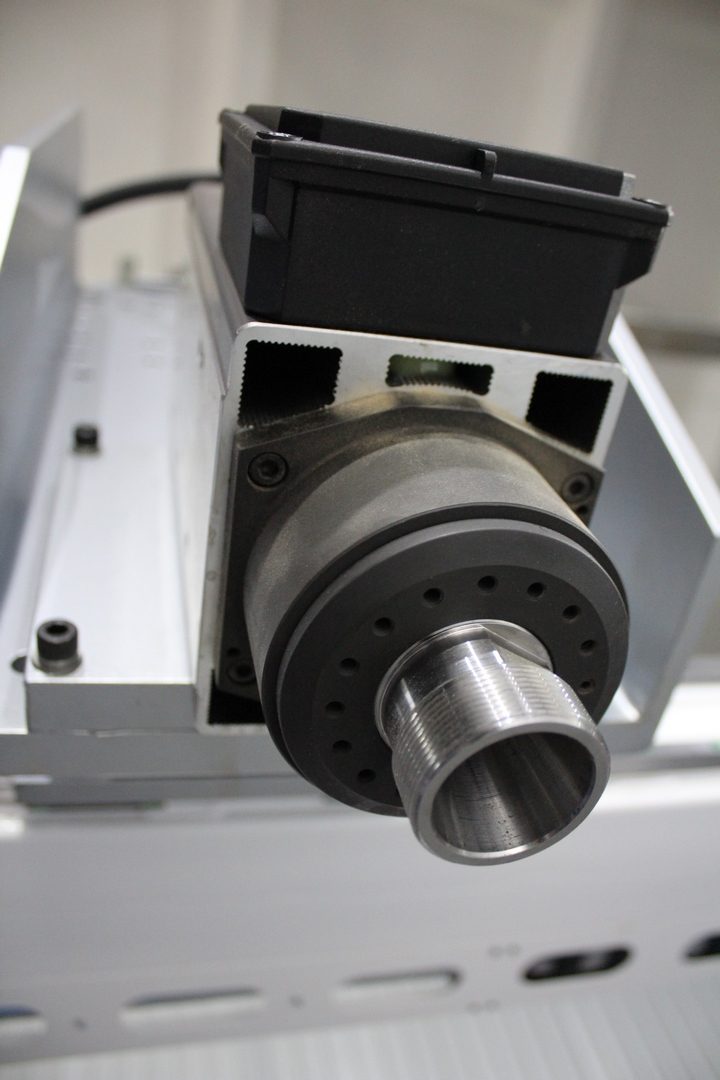

Reliable spindle
Our machines use high-quality spindles from the world’s leading manufacturers with liquid and air cooling. They ensure the accuracy of material processing
-
Simple controls

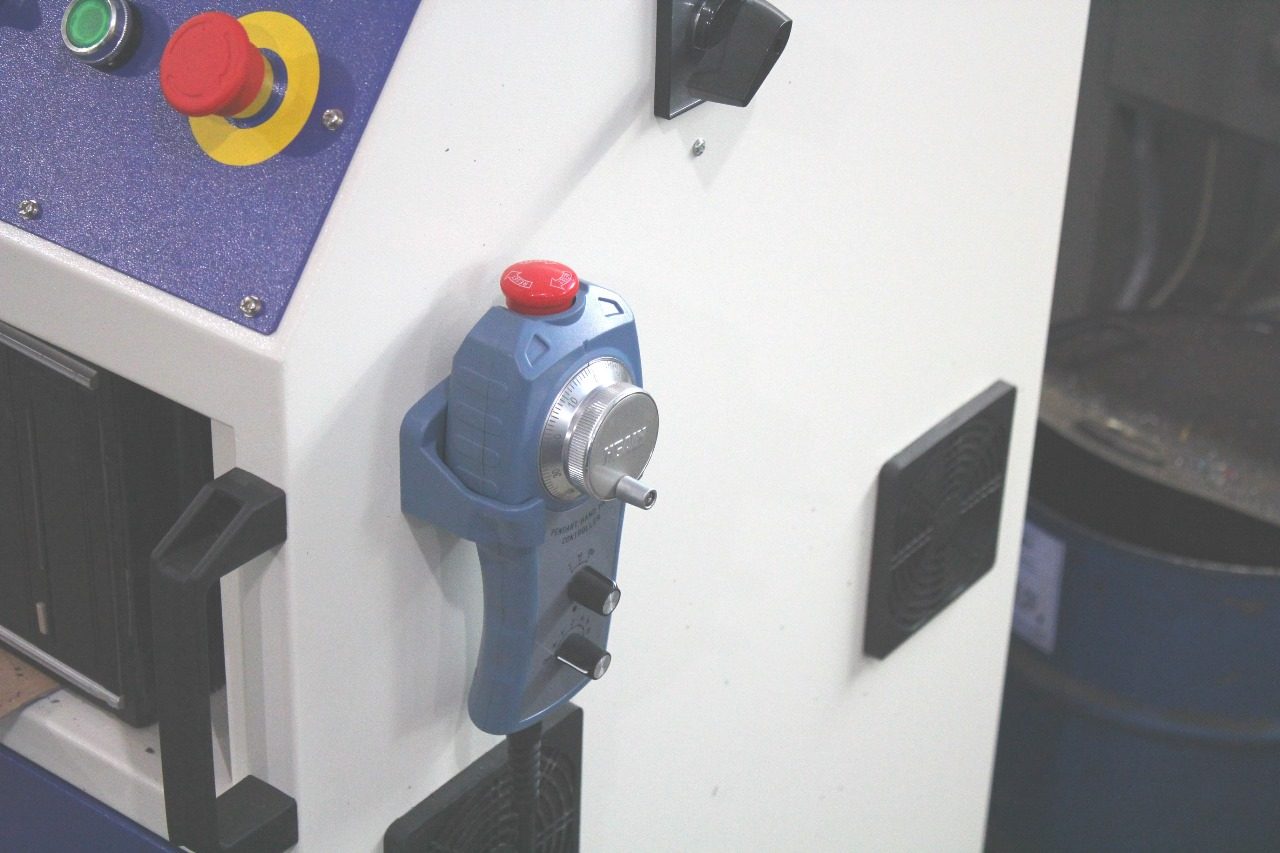

CNC machines are easy to use and have an intuitive interface and control system that allows you to quickly and efficiently meet your production goals
-
Software
We use exclusively professional and licensed software that guarantees efficient machine control and minimizes the risk of malfunctions
-
Service
We provide expert advice and assistance in selecting equipment for your needs and commissioning works. We also ensure the best terms for training and CNC machine maintenance
-
Guarantee
The guarantee for all CNC machines is one year. We also provide post-warranty technical support and equipment maintenance throughout our machines’ period of operation
-
Industrial manufacturing
Manufacturing of CNC machine tools takes place at our production base using precise equipment and careful observance of all the processes and standards of machine tool construction
Information
Information
The design changes in the ATS-2513.H500 machine have led to an enlarged working area along the Z-axis. This not only allows for processing larger parts but also enhances the machine’s suitability for use in the automotive and shipbuilding industries, offering potential buyers increased productivity and efficiency.
Advantages of the model
- Large working area along the Z-axis
- High productivity
- Additional options
- Sturdy construction
- Fast and reliable operation
- User-friendly control system
Worktable size
Y-2500, X-1300, Z-500
Materials that can be processed
- Wood (timber, plywood, MDF, particle board, birch, walnut, etc.)
- Plastics (acrylic, Plexiglas, polycarbonate)
- Composite materials (Dibond and Alucobond)
- Model, foam materials
Application areas
- Furniture production
- Production of 3D decorations
- Outdoor advertising production
- Model building
- Jewelry production
- Making press molds
Construction

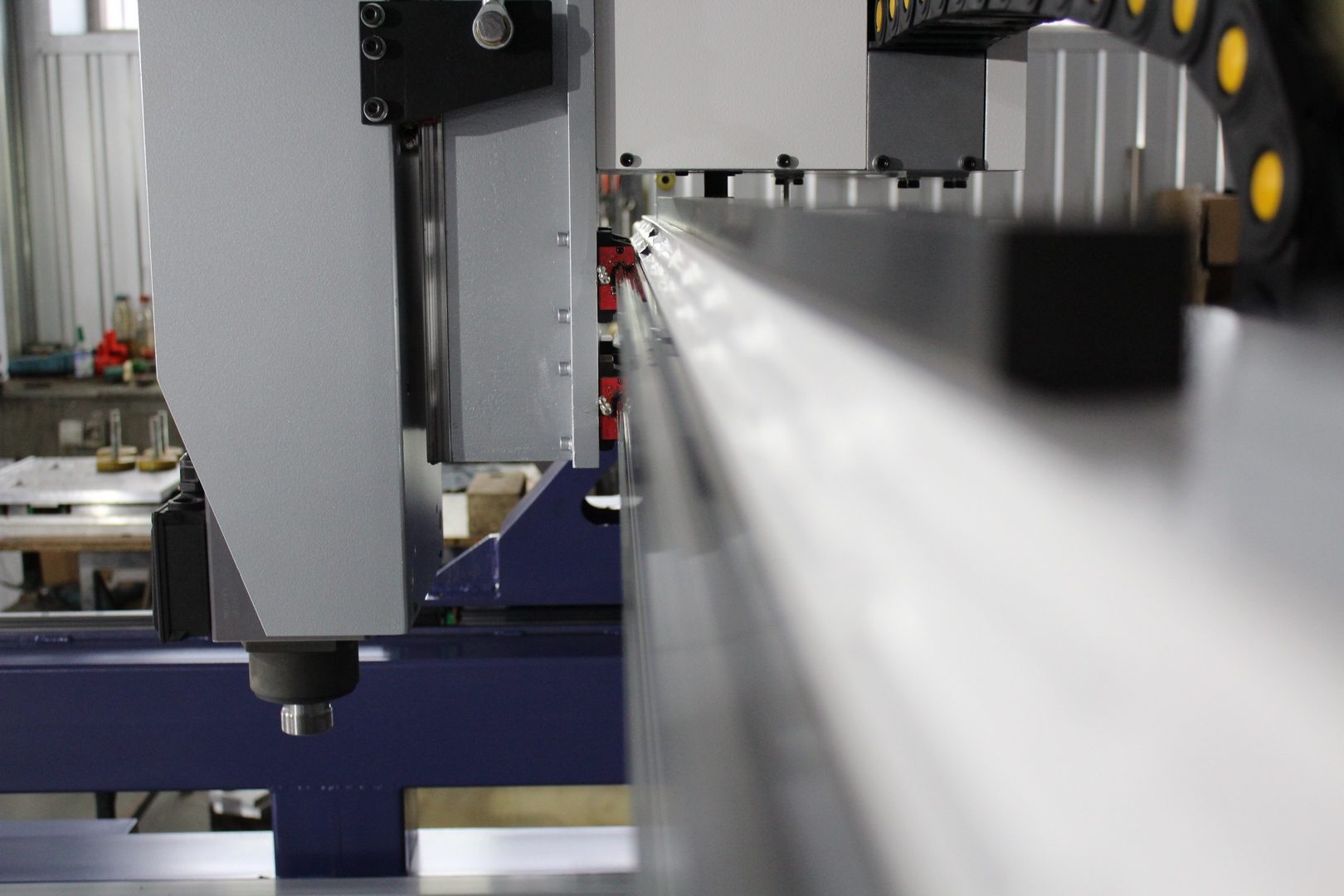

The machine’s solid welded frame is made of steel profile tubes. The portal supports are made of cast iron to avoid excessive vibrations during processing. To ensure the quality of the machine parts, they are processed on modern CNC metalworking equipment.
A modern industrial CNC controller operates the machine.

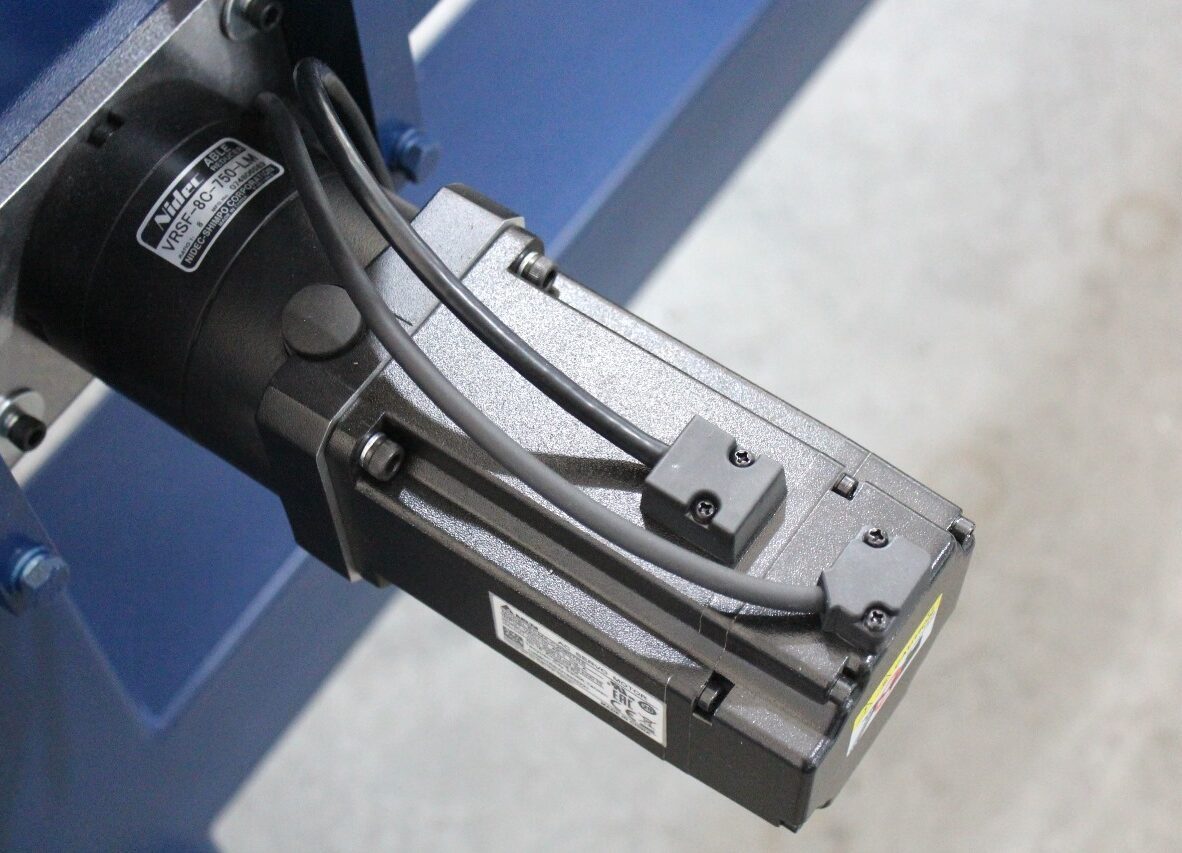

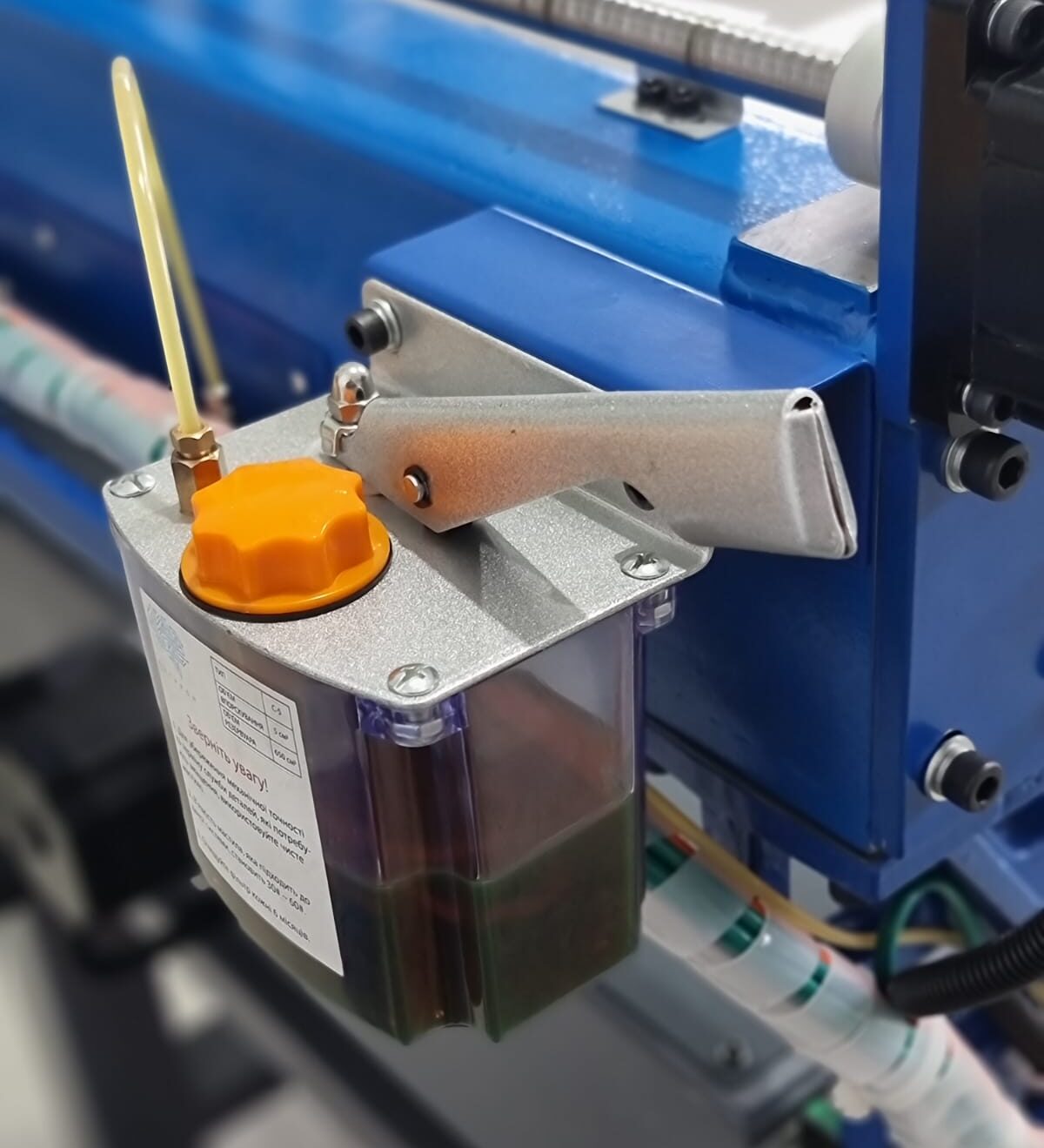

Оptions
Specifications
Table work area (Y×X)
2500×1300 mm
Axes travel (Y×X×Z)
2500×1300×500 mm
Machine dimensions (L×W×H)
3100×1900×2000 mm
Machine weight
940 кg
Machine type
CNC router
Construction
Moving gantry
Spindle nut to table clearance
500 mm
Gantry clearance
500 mm
Worktable with mechanical workpiece fixturing
Profiled aluminum (T-slot)
Linear guide rails
Precision linear guideway
Z axis feed:

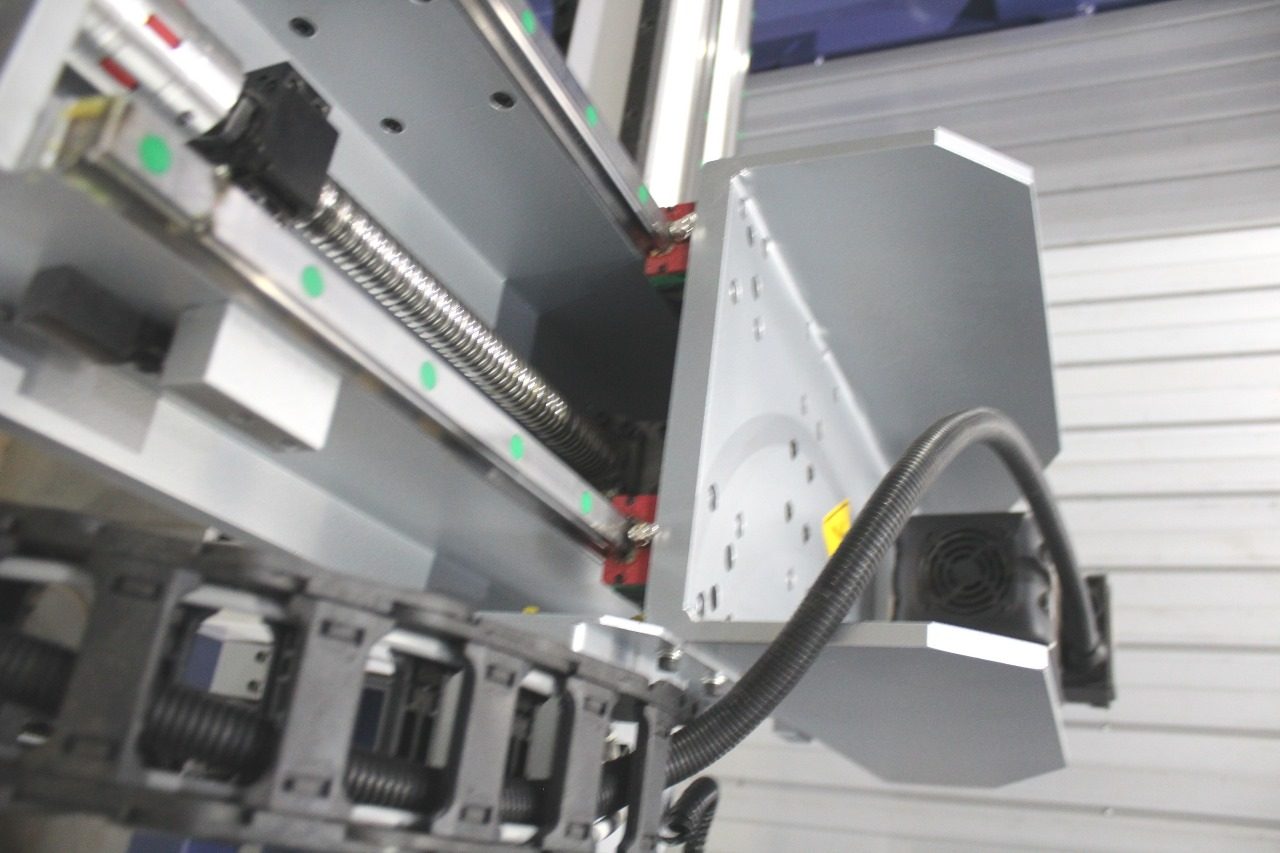

Ball screw drive
X, Y axes feed
Helical rack
Reducer type of X, Y axes
Toothed belt
X, Y, Z axes motors
Stepper motor
Maximum traverse speed, axis Z
6 m/min
Maximum traverse speed, axes X,Y
20 m/min
Work feed rate up to
15 m/min
Spindle power
3.5 кW
Spindle speed
6 000-18 000 rpm
Spindle cooling type
Air
Tool change
Manual
Collet type
ER25
Maximum Ø of shank
16 mm
Tool length measurement sensor type
Contact
Limit switches
Inductive
Control system (CNC)
NCStudio
Programming language
G-Code
Dust collection port Ø
100 mm
Recommended dust collection performance
3200 m3/hour
Power requirements
380 V, 50 Hz
Maximum power consumption
5 кW
FAQ
Do you conduct machine installation and training?
Yes, we do. Upon the client’s request, our specialists perform installation work and provide training on the basics of machine operation and creating toolpaths.
What is the maximum diameter of the rotary axis?
For the ATS-2513.H500 machine, we offer two standard sizes for the rotary axis:
- Diameter (D) – 200 mm, length (L) – 1200 mm;
- Diameter (D) – 200 mm, length (L) – 1200 mm;
The rotary axis D200 and L1200 can process wood of all types, plastic, composite materials, and soft metals.
The rotary axis D400, L1500 can process polystyrene, foam, plaster, plastic, and foam materials.
Do you offer shipping?
Depending on the region of Ukraine, we provide equipment shipping through our transportation or other courier companies. We have also developed turnkey solutions for overseas businesses.
How do you create toolpaths for the machine?
Various CAM software allows the creation of toolpaths, such as V-Carve, ArtCAM, Rhinoceros, Deskproto, etc.
We recommend considering using toolpath generation features within CAM software. We also offer a comprehensive training course on how to utilize these toolpath features effectively.
Can I later install an automatic tool change (ATC) spindle?
Installing an automatic tool change instead of a manual one is complex. This process includes replacing the spindle, rewiring, installing a tool magazine, replacing the CNC system, installing pneumatic components, and so on. Such an operation can only be performed at our manufacturing facility.
How do you protect a CNC machine from power surges?
As the manufacturer, we also recommend installing a voltage stabilizer at the CNC machine’s input to ensure stable operation and avoid issues related to power surges.
How is the machine shipped?
The machine is shipped to you fully assembled, securely packed in its factory packaging. Due to its overall dimensions, it’s transported on appropriately sized transport vehicles, ensuring its safe and intact delivery to your location.
Is there post-warranty support and maintenance available?
We provide post-warranty support and service for all our machines. Mechanical and electrical parts used in our machines are always in stock.
