A medium-sized CNC router for efficient processing of wood, composite materials, plastic materials and soft metals
CNC router "Fenix"
It is ideal for business seeking affordable equipment with high technical characteristics.
High work speed, excellent equipment, and a medium-sized work table make this machine indispensable for implementing tasks related to outdoor advertising, furniture, and carpentry.
The CNC router “Fenix” is high-quality, reliable, and professional equipment that can easily be included in your production processes and will quickly become an ideal assistant for implementing various projects and tasks.
-
Quality components
During the production of CNC machines, we use only high-quality brand components. They guarantee the accuracy, reliability and long-term operation of CNC routers.
-
Professional production
During the existence of the company, we have established ourselves as a professional production that is actively developing and working on the modernization of equipment and the creation of new models of machines.
-

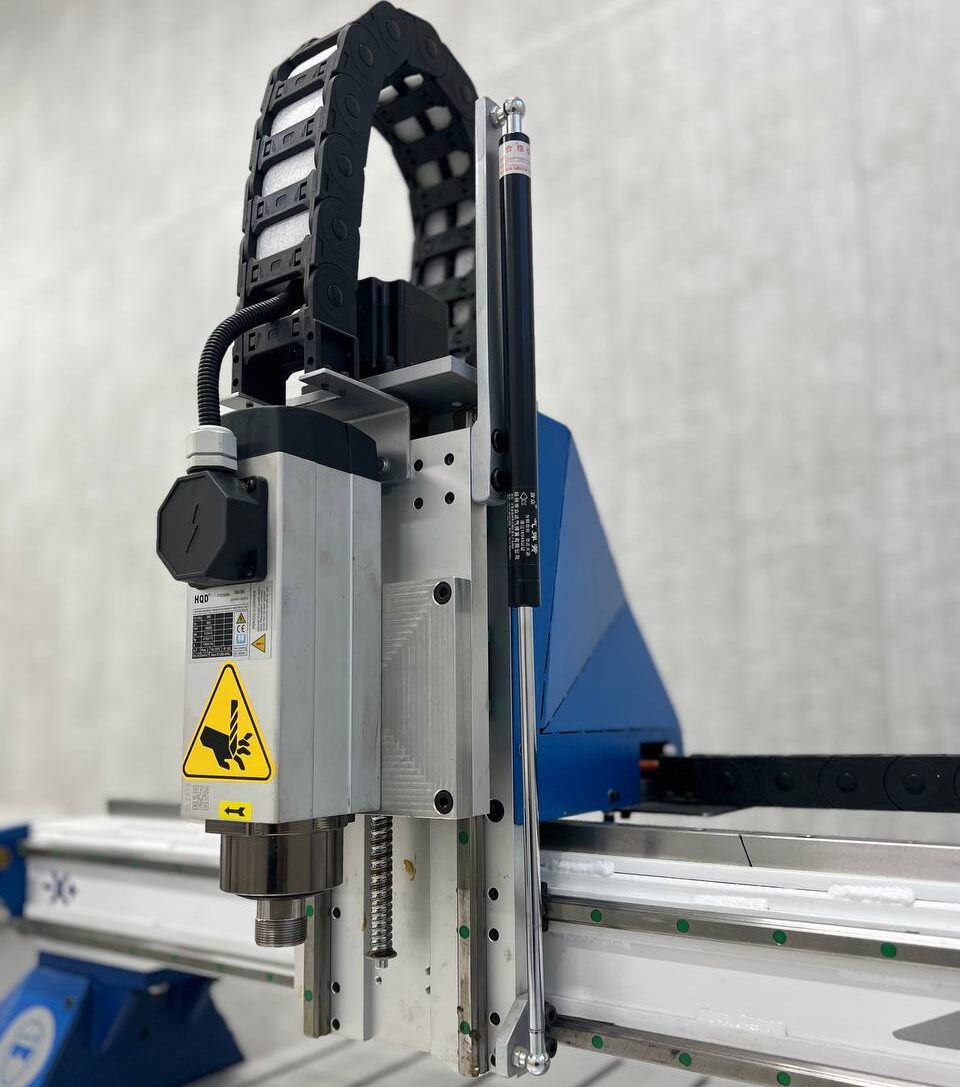

Reliable spindle
Our machines use high-quality spindles from the world’s leading manufacturers with liquid and air cooling. They ensure the accuracy of material processing.
-
Simple controls
CNC machines are easy to use and have an intuitive interface and control system that allows you to quickly and efficiently meet your production goals.
-
Software
We use exclusively professional and licensed software that guarantees efficient machine control and minimizes the risk of malfunctions.
-
Service
We provide expert advice and assistance in selecting equipment for your needs and commissioning works. We also ensure the best terms for training and CNC machine maintenance.
-
Guarantee
The guarantee for all CNC machines is one year. We also provide post-warranty technical support and equipment maintenance throughout our machines’ period of operation.
-
Industrial manufacturing
Manufacturing of CNC machine tools takes place at our production base using precise equipment and careful observance of all the processes and standards of machine tool construction.
Information
Information
The Fenix model is among the most affordable in the lightweight CNC router series. This machine is specially designed for small furniture manufacturers and other businesses.
Advantages of the model
- Affordable price
- Compact size of the machine
- Low energy consumption
- Professional construction of the machine
- User-friendly control system
Worktable size
The machine is produced in two sizes*:
- Y-1300, X-1300, Z-200;
- Y-2500, X-1300, Z-200
*It is possible to make non-standard sizes
Materials that can be processed
- Soft metals (aluminum, brass, copper)
- Wood (timber, plywood, MDF, particle board, birch, walnut, etc.)
- Plastics (acrylic, Plexiglas, polycarbonate)
- Polystyrene
- Composite materials (Carbon fiber, fiberglass)
Application areas
- Furniture production
- Production of 3D decorations
- Shop equipment
- Shipbuilding
- Model building
- Making signs and plaques;
- Processing of plastics
Construction
The machine’s solid welded frame is made of steel profile tubes. The portal supports are made of cast iron to avoid excessive vibrations during processing. To ensure the quality of the machine parts, they are processed on modern CNC metalworking equipment.
A modern industrial CNC controller operates the machine.
Options
Specifications
Table work area (Y×X)
1300×1300 mm
Axes travel (Y×X×Z)
1300×1300×200 mm
Machine dimensions (L×W×H)
1650×1700×1600 mm
Machine weight
450 kg
Machine type
CNC router
Construction
Moving gantry
Spindle nut to table clearance
200 mm
Gantry clearance
150 mm
Worktable with mechanical workpiece fixturing
Profiled aluminum (T-slot)
Linear guide rails
Precision linear guideway
Z axis feed
Ball screw drive
X, Y axes feed
Helical rack
Reducer type of X, Y axes
Toothed belt
X, Y, Z axes motors
Stepper motor
Maximum traverse speed, axis Z
6 m/min
Maximum traverse speed, axes X,Y
14 m/min
Work feed rate up to
14 m/min
Spindle power
3.5 кW
Spindle speed
6 000-18 000 rpm
Spindle cooling type
Air
Tool change
Manual
Сollet type (maximum Ø of shank)
ER25 (16 mm)
Tool length measurement sensor type
Contact
Limit switches
Inductive
Control system (CNC)
DSP
Programming language
G-Code
Dust collection port Ø
100 mm
Recommended dust collection performance
2200 m3/hour
Power requirements
380/220 V, 50 Hz
Maximum power consumption
5 кW
FAQ
Do you conduct machine installation and training?
Yes, we do. Upon the client’s request, our specialists perform installation work and provide training on the basics of machine operation and creating toolpaths.
Can a 4th axis be added later on?
To effortlessly install a 4th axis (such as a rotary axis) later on, we recommend ordering the “preparation for the 4th axis” option along with the machine.
Which control system should I choose?
The Fenix can be operated with two types of controllers: 1. DSP controler; 1. NC Studio CNC system. The advantages of the DSP controller its compact size, simplicity, and ease of use, as well as the fact that there is no need to purchase a PC. The disadvantages of DSP controller include limited screen informativeness and fragility (it may malfunction if dropped). The NC Studio CNC system, when used with a PC, significantly reduces programming time and minimizes the risk of errors. However, it does require a computer system unit with a 32-bit Windows operating system.
How do you create toolpaths for the machine?
Various CAM software allows the creation of toolpaths, such as V-Carve, ArtCAM, Rhinoceros, Deskproto, etc. We recommend considering using toolpath generation features within CAM software. We also offer a comprehensive training course on how to utilize these toolpath features effectively.
Is this model available in 380 volts?
Two types of power supply are used in this range of machines: 220 volts and 380 volts. By default, the machine is equipped with 220-volt equipment, but it can be changed for 380 volts upon the customer’s request.
Do you offer shipping?
Depending on the region of Ukraine, we provide equipment shipping through our transportation or other courier companies. We have also developed turnkey solutions for overseas businesses.
Is there post-warranty support and maintenance available? We provide post-warranty support and service for all our machines. Mechanical and electrical parts used in our machines are always in stock.
We provide post-warranty support and service for all our machines. Mechanical and electrical parts used in our machines are always in stock.
