ATS-2513.Auto

A modern CNC router equipped with a spindle with automatic tool change

  • Quality components

    During the production of CNC machines, we use only high-quality brand components. They guarantee the accuracy, reliability and long-term operation of CNC routers

  • Professional production

    During the existence of the company, we have established ourselves as a professional production that is actively developing and working on the modernization of equipment and the creation of new models of machines

  • Reliable spindle

    Our machines use high-quality spindles from the world’s leading manufacturers with liquid and air cooling. They ensure the accuracy of material processing

  • Simple controls

    CNC machines are easy to use and have an intuitive interface and control system that allows you to quickly and efficiently meet your production goals

  • Software

    We use exclusively professional and licensed software that guarantees efficient machine control and minimizes the risk of malfunctions





  • Service

    We provide expert advice and assistance in selecting equipment for your needs and commissioning works. We also ensure the best terms for training and CNC machine maintenance

  • Guarantee

    The guarantee for all CNC machines is one year. We also provide post-warranty technical support and equipment maintenance throughout our machines’ period of operation





  • Industrial manufacturing

    Manufacturing of CNC machine tools takes place at our production base using precise equipment and careful observance of all the processes and standards of machine tool construction

Information

Information

The ATS-2513.Auto machine is a significant evolution of the ATS-2513 model, primarily aimed at increasing automation through the installation of an automatic tool change system. This enhanced automation not only boosts the machine’s productivity but also makes it an ideal choice for mass production, appealing to potential buyers in the manufacturing industry.

Advantages of the model

  • Affordable price
  • Compact size of the machine
  • Low energy consumption
  • Professional construction of the machine
  • User-friendly control system

Worktable size

Y-2500, X-1300, Z-200*

*Possible increase of Z-axis travel up to 300 mm

Materials that can be processed

  • Wood (timber, plywood, MDF, particle board, birch, walnut, etc.)
  • Plastics (acrylic, Plexiglas, polycarbonate)
  • Polystyrene and PVC
  • Composite materials (Dibond and Alucobond)
  • Soft metals (aluminum, brass, copper)

Application areas

  • Furniture production
  • Production of 3D decorations
  • Outdoor advertising production
  • Model building
  • Jewelry production
  • Making press molds

Construction

The machine’s solid welded frame is made of steel profile tubes. The portal supports are made of cast iron to avoid excessive vibrations during processing. To ensure the quality of the machine parts, they are processed on modern CNC metalworking equipment.

A modern industrial CNC controller operates the machine.



Оptions

VCarve Pro software

The VCarve Pro software offers various tools and options for creating control programs for CNC machines, including cutting, milling, engraving, and processing of flat and three-dimensional surfaces.

Vacuum Table

A matrix table made of impact-resistant composite material and a powerful vacuum pump will ensure reliable fastening of sheet materials. Additionally, it can be equipped with integrated T-slots for combined fastening of processed workpieces.

Rotary axis

It is used for manufacturing cylindrical-shaped products and for processing parts from multiple sides. The maximum processing diameter of workpiece is 100(200) mm. To control a machine with a rotary axis, a CNC controller with four independently controlled axes is required.

Replacing Stepper Motors with Servo Motors

Compared to stepper motors, servo motors provide greater speed and smoother operation of the machine. This option is recommended if the main requirement is high productivity of the machine.

Extraction system

The primary purpose of the system is to remove dust, smoke, gases, and harmful substances generated during laser cutting. This system may also include extraction devices, filters, fans, and other components to maintain a clean and safe air environment in the working area.

Centralized Lubrication System

It provides convenient machine maintenance by allowing quick lubrication of all necessary components. A manual control pump supplies lubricant material.

Specifications

Table work area (Y×X)

2500×1300 mm

Axes travel (Y×X×Z)

2500×1300×200 mm

Machine dimensions (L×W×H)

3200×1900×1800 mm

Machine weight

960 кg

Machine type

CNC router

Construction

Moving gantry

Spindle nut to table clearance

200 mm

Gantry clearance

200 mm

Worktable with mechanical workpiece fixturing

Profiled aluminum (T-slot)

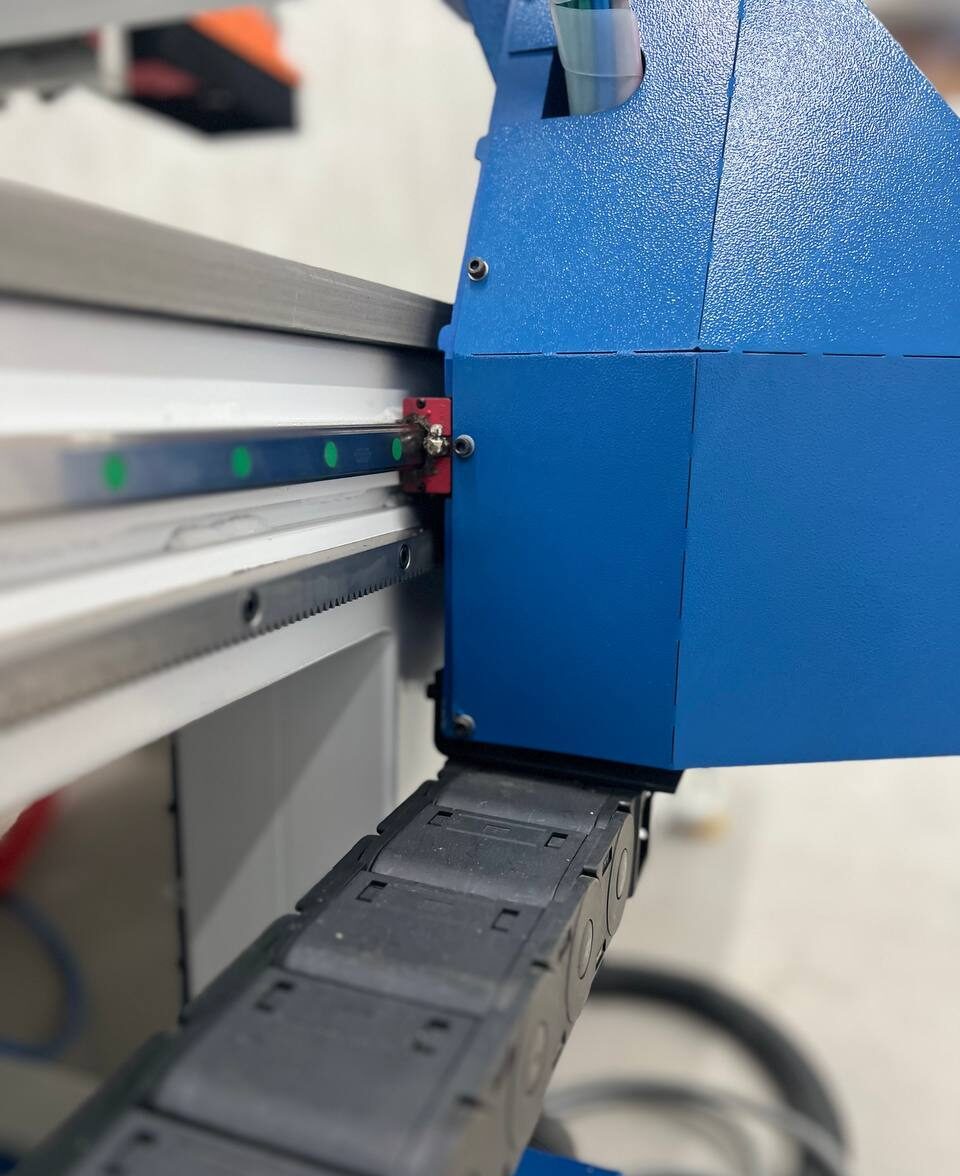

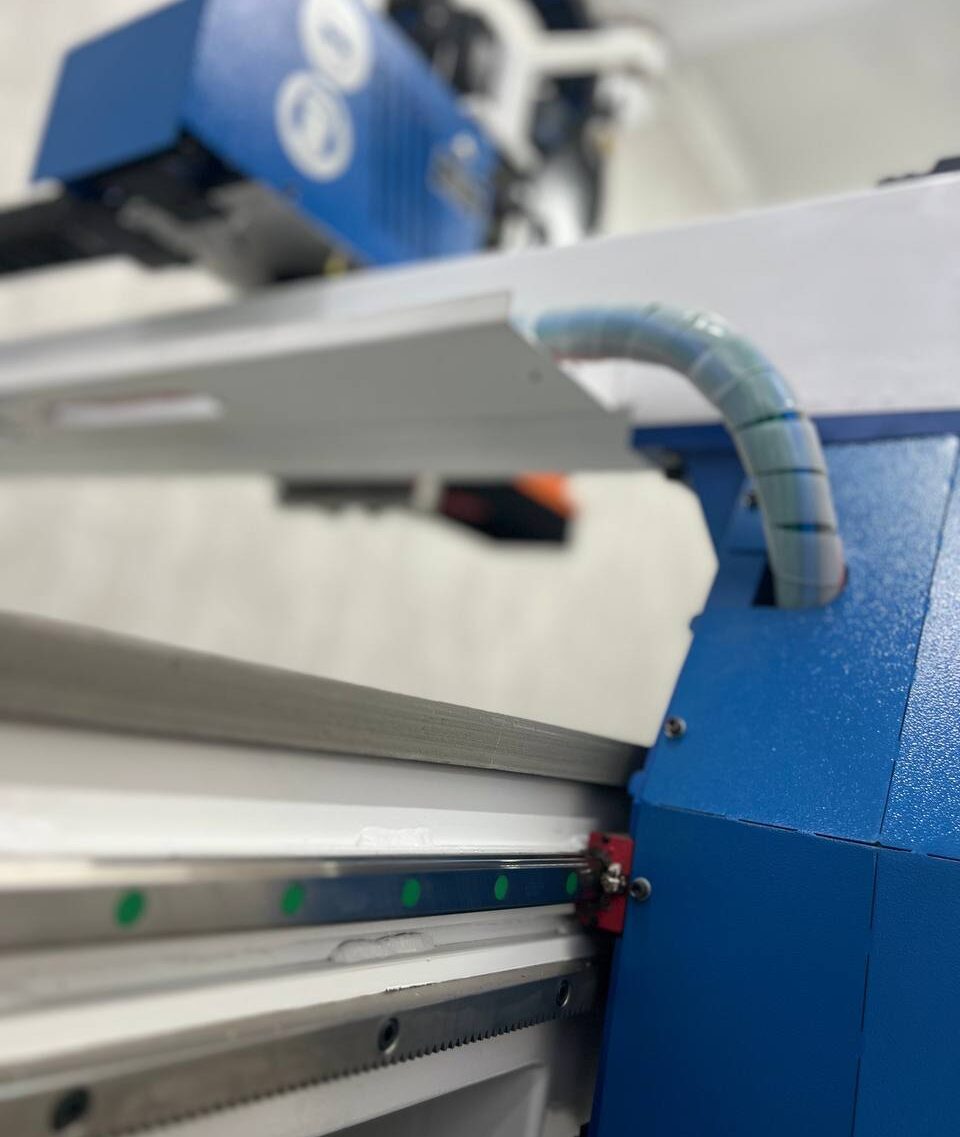

Linear guide rails

Precision linear guideway

Z axis feed:

Ball screw drive

X, Y axes feed

Helical rack

Reducer type of X, Y axes

Toothed belt

X, Y, Z axes motors

Stepper motor

Maximum traverse speed, axis Z

6 m/min

Maximum traverse speed, axes X,Y

20 m/min

Work feed rate up to

15 m/min

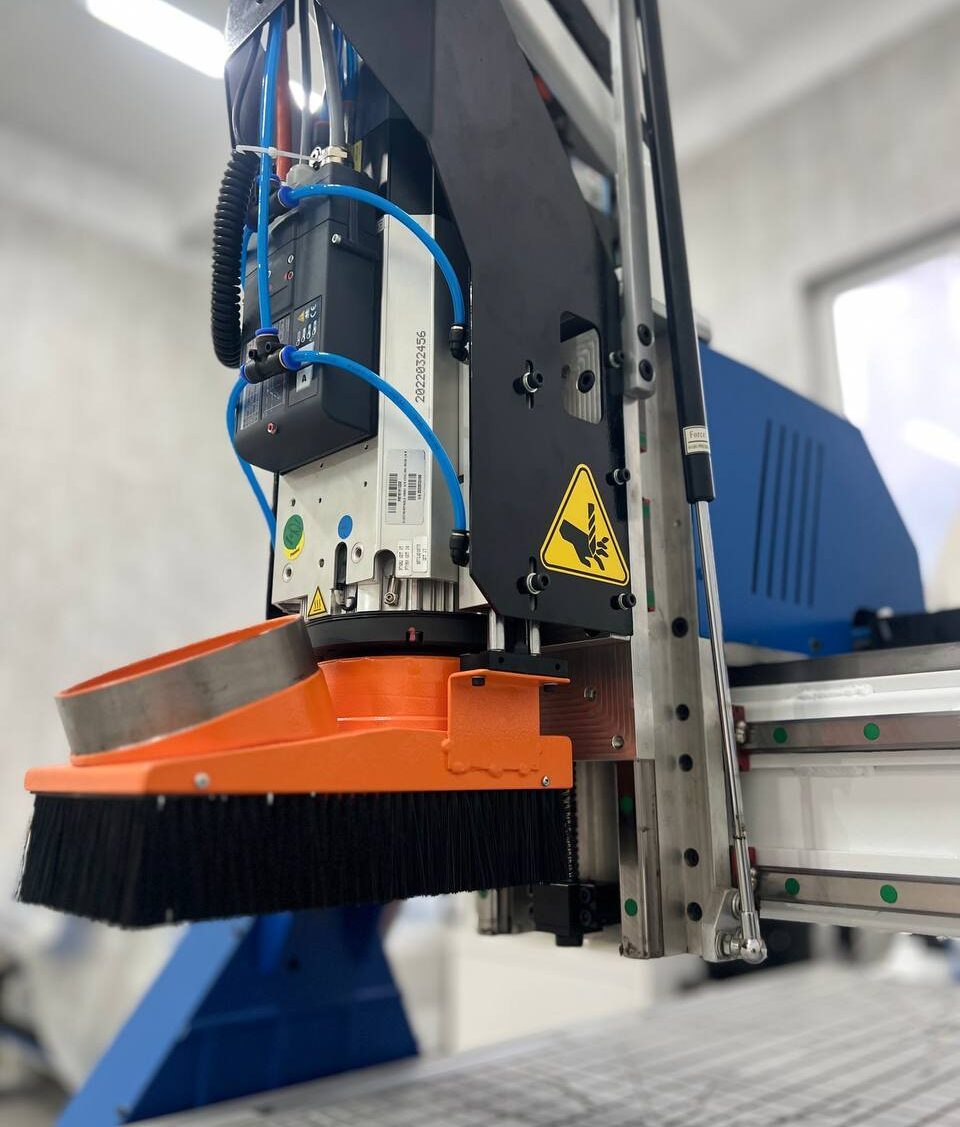

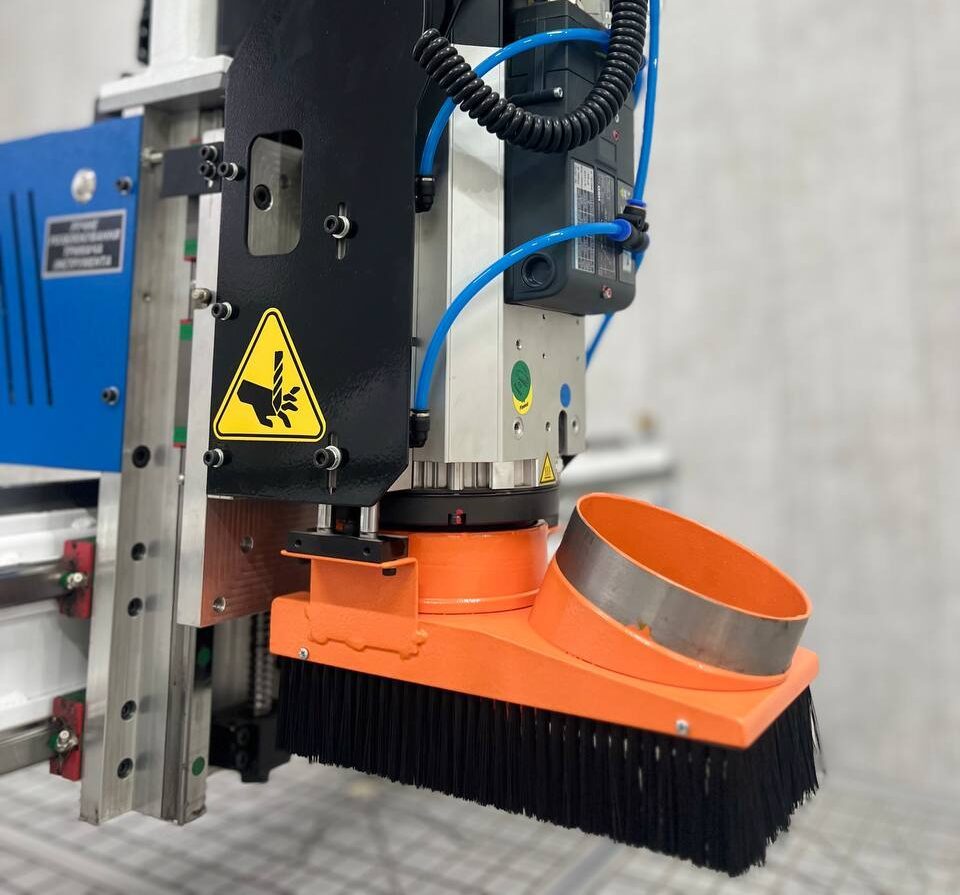

Spindle power

7.5 кW

Spindle speed

6 000-24 000 rpm

Spindle cooling type

Air

Tool change

Automatic

Tool magazine type

Linear

Tool holder type

ISO30

Tool magazine size

from 4 pcs

Collet type

ER32

Maximum Ø of shank

20 mm

Tool length measurement sensor type

Contact

Limit switches

Inductive

Control system (CNC)

NC60A

Programming language

G-Code

Dust collection port Ø

100 mm

Recommended dust collection performance

3200 m3/hour

Power requirements

380 V, 50 Hz

Maximum power consumption

10 кW

FAQ

Do you conduct machine installation and training?

Yes, we do. Upon the client’s request, our specialists perform installation work and provide training on the basics of machine operation and creating toolpaths.

Can you increase the number of tools in the tool magazine?

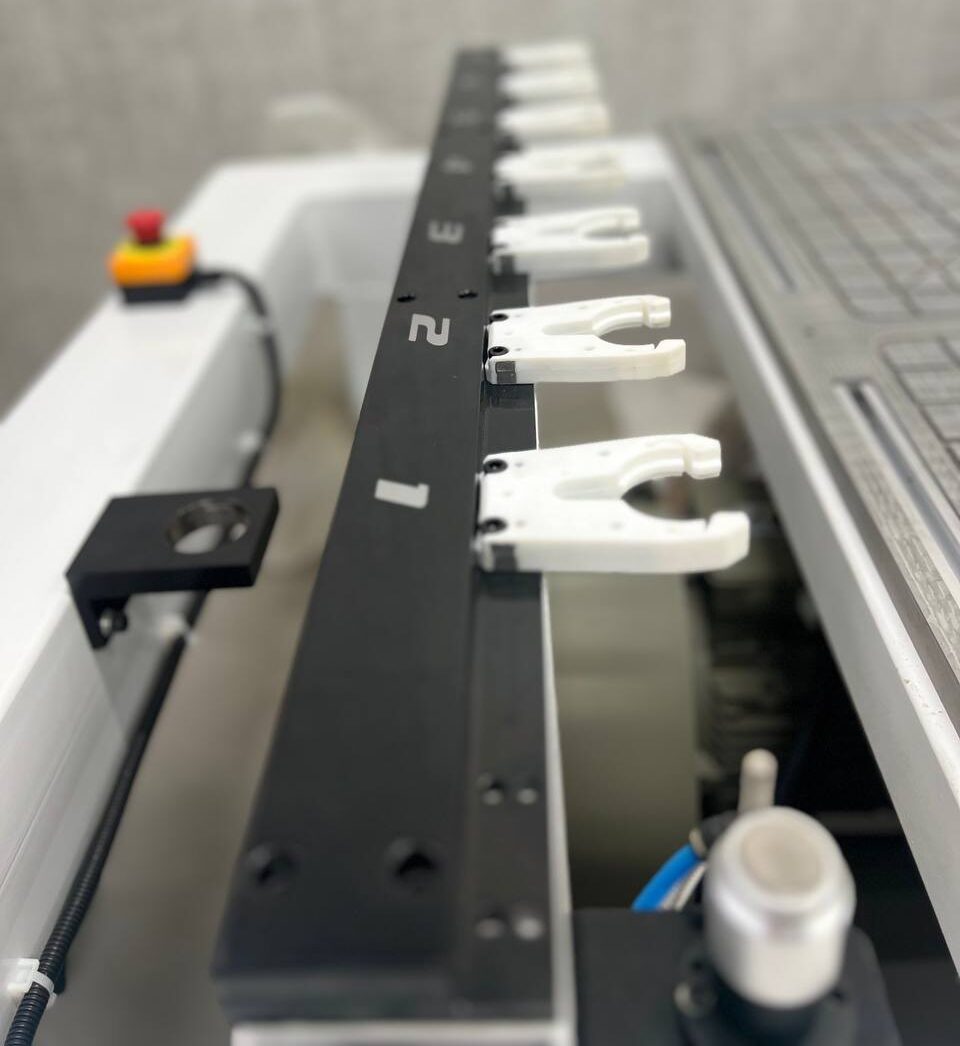

The base configuration of a CNC machine includes four interchangeable tools in the tool magazine. We can increase the tool magazine size up to seven tools without any structural modifications. However, a change in the linear magazine’s layout is required to accommodate even more tools.

What kind of compressor is necessary for a CNC machine?

An additional compressor is required for machines with automatic tool change. For stable and proper operation, a compressor capable of maintaining pressure at the machine’s input of 8-10 bar and having a productivity of 420 normal litres per minute is necessary. The preferred volume of the compressor’s receiver should be at least 200 litres.

Which ATC spindle should I choose?

Our company uses spindles from both Italian and Chinese manufacturers in machines with automatic tool change.

The advantages of Italian spindles are precision manufacturing, long service life (at least five years), and repairability. The downside of such a spindle is its high cost.

The advantage of Chinese spindles is their low cost, while the downside is their shorter service life compared to Italian manufacturers.

What should I choose: stepper motors or servo motors?

Stepper motors offer a low-cost solution, the ability to operate at low speeds without deteriorating performance, and, most importantly, precise positioning and good tolerance to mechanical loads, instilling confidence in the quality of your choice. The advantages of servo motors are precise movement, quiet operation, high acceleration, long service life, and smooth motion. Therefore, the choice between servo motors and stepper motors as the feed drives for a CNC machine should be made based solely on economic and technical feasibility. For more information on the principles of operation of stepper and servo motors, you can read ->here<-

Is a PC required for the machine?

An industrial computer controls CNC machines with automatic tool change, which is integrated into the machine’s control system. Therefore, a PC is not required for such machines.

How do you protect a CNC machine from power surges?

As the manufacturer, we also recommend installing a voltage stabilizer at the CNC machine’s input to ensure stable operation and avoid issues related to power surges.

How is the machine shipped?

The machine is shipped to you fully assembled, securely packed in its factory packaging. Due to its overall dimensions, it’s transported on appropriately sized transport vehicles, ensuring its safe and intact delivery to your location.
