ATS-0609

Compact, small-sized CNC machine for use in workshops, laboratories and educational institutions

  • Quality components

    During the production of CNC machines, we use only high-quality brand components. They guarantee the accuracy, reliability and long-term operation of CNC routers

  • Professional production

    During the existence of the company, we have established ourselves as a professional production that is actively developing and working on the modernization of equipment and the creation of new models of machines

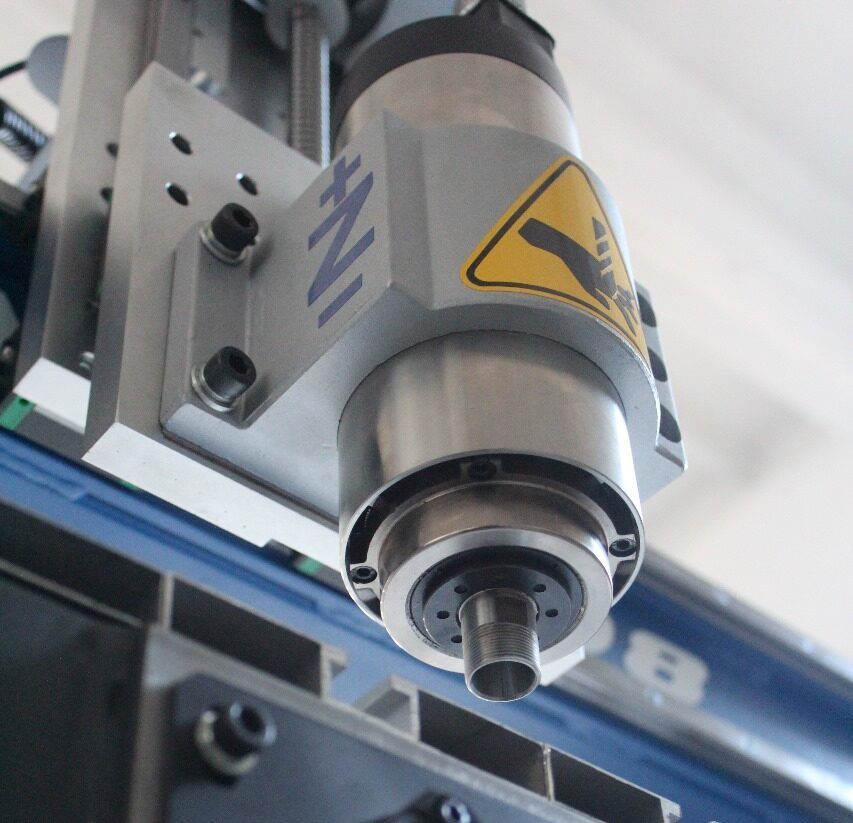

  • Reliable spindle

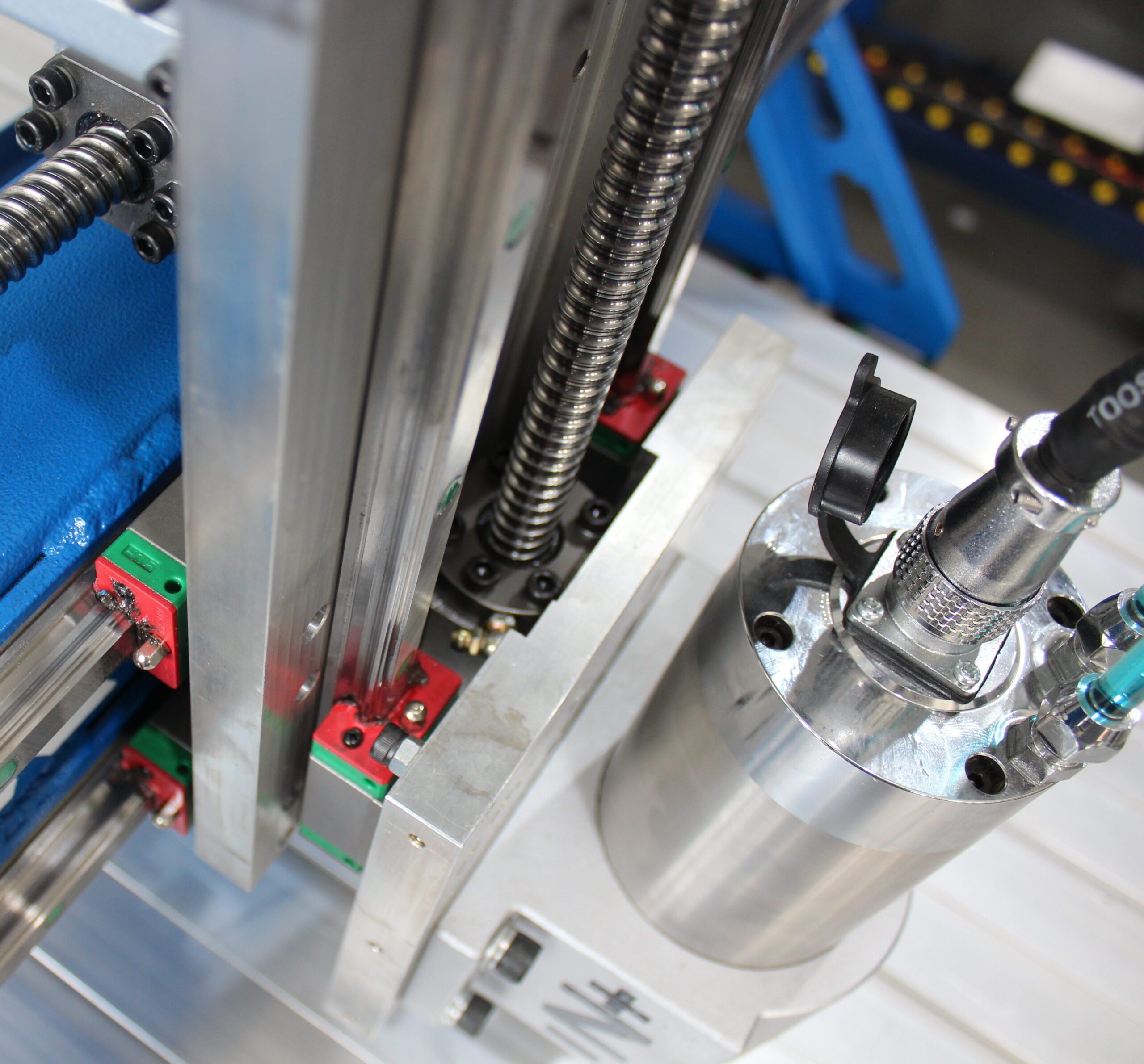

    Our machines use high-quality spindles from the world’s leading manufacturers with liquid and air cooling. They ensure the accuracy of material processing

  • Simple controls

    CNC machines are easy to use and have an intuitive interface and control system that allows you to quickly and efficiently meet your production goals

  • Software

    We use exclusively professional and licensed software that guarantees efficient machine control and minimizes the risk of malfunctions





  • Service

    We provide expert advice and assistance in selecting equipment for your needs and commissioning works. We also ensure the best terms for training and CNC machine maintenance

  • Guarantee

    The guarantee for all CNC machines is one year. We also provide post-warranty technical support and equipment maintenance throughout our machines’ period of operation



  • Industrial manufacturing

    Manufacturing of CNC machine tools takes place at our production base using precise equipment and careful observance of all the processes and standards of machine tool construction

Information

Information

The ATS-0609 model has the smallest processing area in our production line. This CNC router is suitable for small furniture manufacturing and woodworking shops.

Advantages of the model

  • Affordable price
  • Compact size of the machine
  • Low energy consumption
  • Professional construction of the machine
  • User-friendly control system

Worktable size

Y-900, X-600, Z-150*

*Possible increase of Z-axis travel up to 200 mm

Materials that can be processed

  • Wood (timber, plywood, MDF, particle board, birch, walnut, etc.)
  • Plastics (acrylic, Plexiglas, polycarbonate)
  • Polystyrene and PVC
  • Composite materials (Dibond and Alucobond)
  • Soft metals (aluminum, brass, copper)

Application areas

  • Furniture production
  • Production of 3D decorations
  • Outdoor advertising production
  • Model building
  • Jewelry production
  • Making press molds

Construction

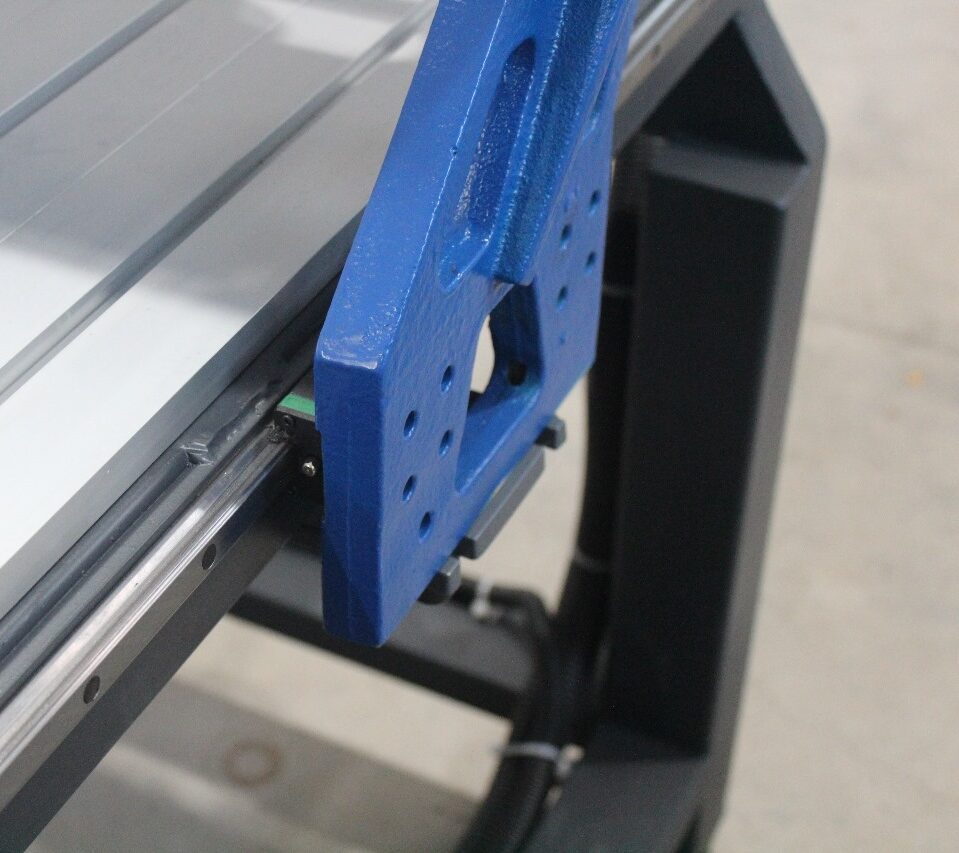

The machine’s solid welded frame is made of steel profile tubes. The portal supports are made of cast iron to avoid excessive vibrations during processing. To ensure the quality of the machine parts, they are processed on modern CNC metalworking equipment.

Options

VCarve Pro software

The VCarve Pro software offers various tools and options for creating control programs for CNC machines, including cutting, milling, engraving, and processing of flat and three-dimensional surfaces.

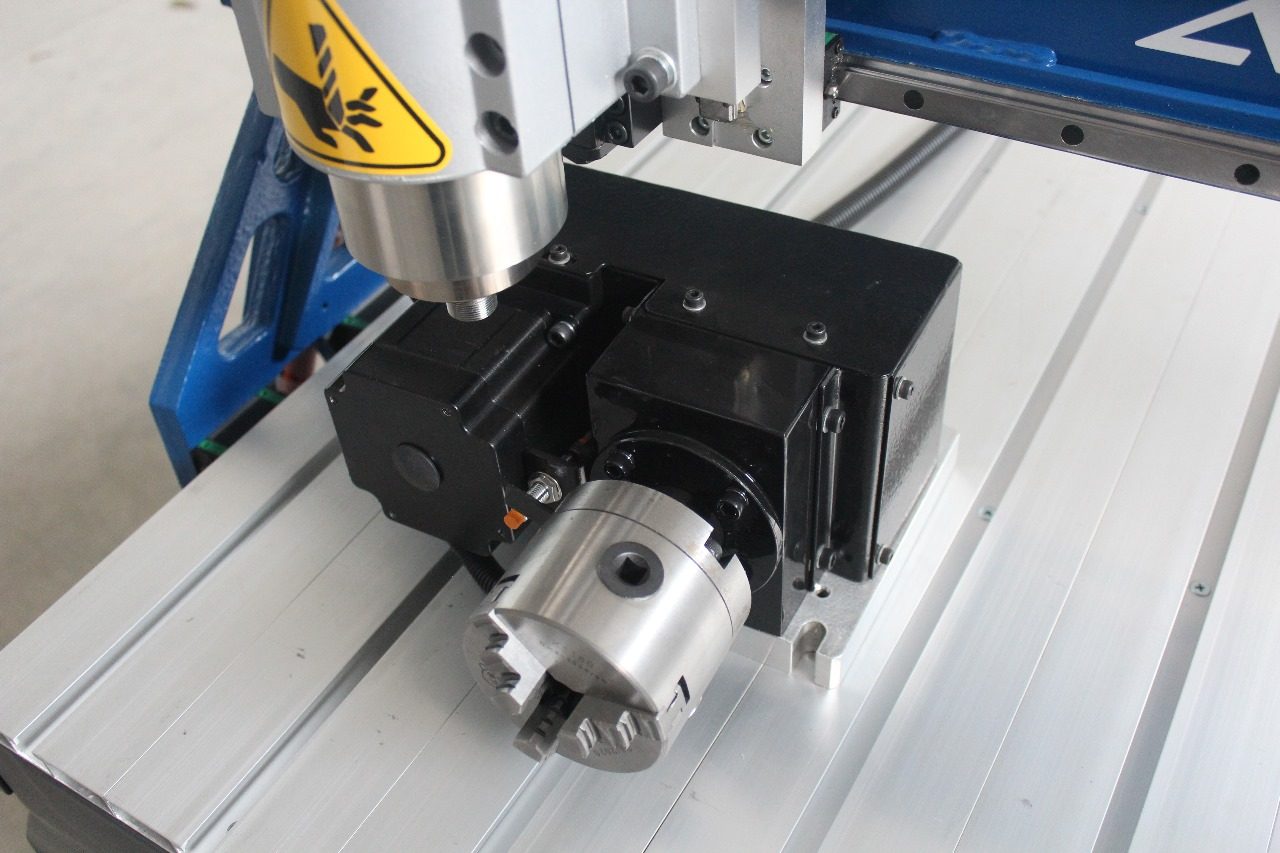

Rotary axis

It is used for manufacturing cylindrical-shaped products and for processing parts from multiple sides. The maximum processing diameter of workpiece is 100 mm. To control a machine with a rotary axis, a CNC controller with four independently controlled axes is required.

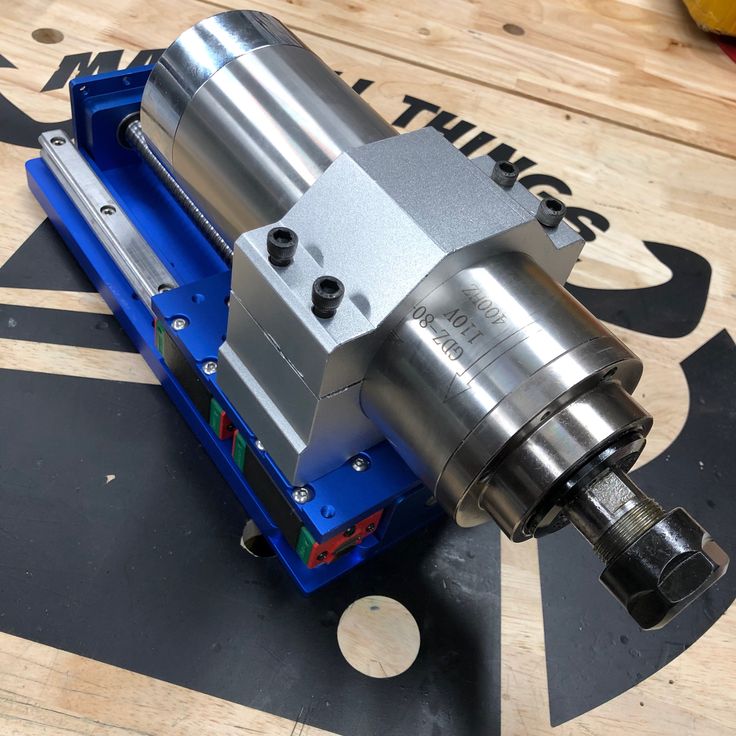

Spindle replacement

To increase productivity in processing hard materials, the base spindle can be replaced with a liquid-cooled spindle with a power of 2.2 kW instead of the 1.5 kW one.

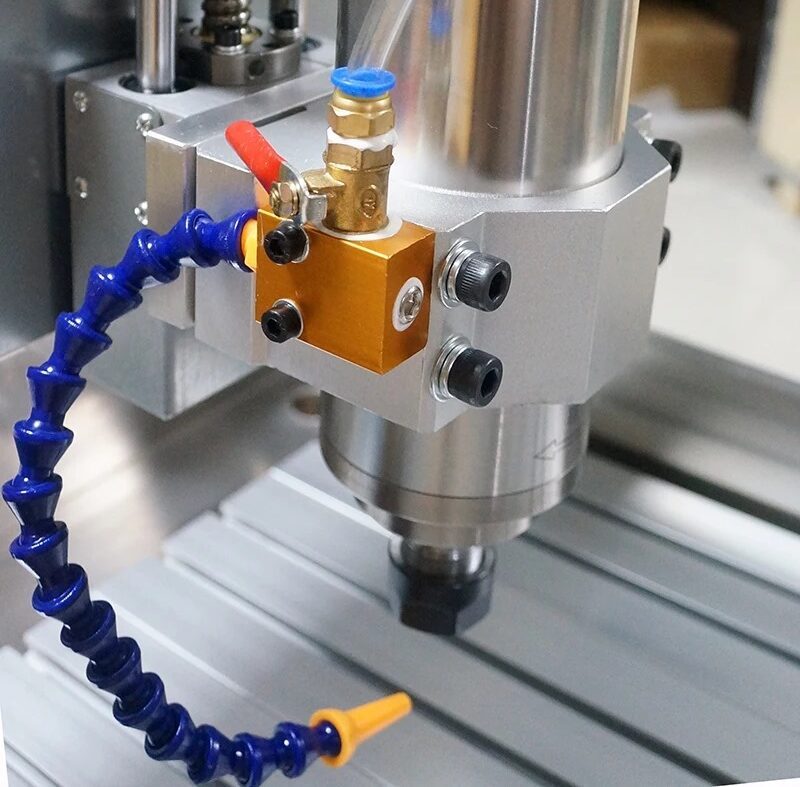

MQL (Minimum Quantity Lubrication) system

To process soft, non-ferrous metals, we recommend installing an MQL system. It will dissipate heat from the machining area and deliver cutting fluid to the cutting zone, improving processing quality and reducing tool wear.

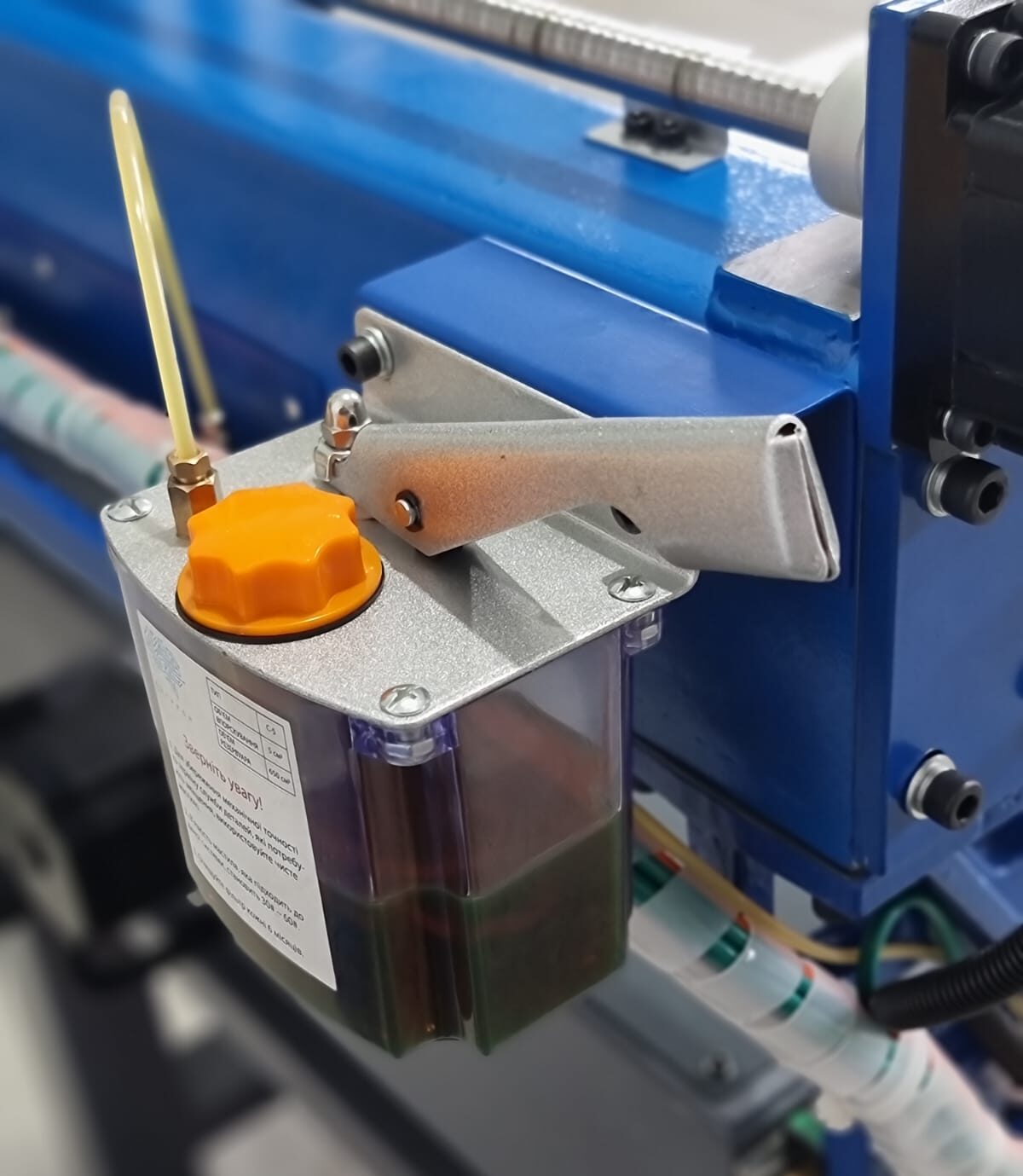

Centralized Lubrication System

It provides convenient machine maintenance by allowing quick lubrication of all necessary components. A manual control pump supplies lubricant material.

Specifications

Table work area (Y×X)

900×600 mm

Axes travel (Y×X×Z)

900×600×150 mm

Machine dimensions (L×W×H)

1300×1000×1500 mm

Machine weight

180 кg

Machine type

CNC router

Construction

Moving gantry

Spindle nut to table clearance

150 mm

Gantry clearance

150 mm

Worktable with mechanical workpiece fixturing

Combined (MDF + T-slot),

Linear guide rails

Precision linear guideway

Z axis feed:

Ball screw drive

X, Y axes feed

Ball screw drive

Reducer type of X, Y axes

Stepper motor

Maximum traverse speed, axis Z

8 m/min

Maximum traverse speed, axes X,Y

8 m/min

Work feed rate up to

до 6 m/min

Spindle power

1.5 кW

Spindle speed

6 000-24 000 rpm

Spindle cooling type

air

Tool change

Manual

Сollet type

ER16

Maximum Ø of shank

10 mm

Tool length measurement sensor type

Contact

Limit switches

Inductive

Control system (CNC)

DSP

Programming language

G-Code

Dust collection port Ø

100 mm

Recommended dust collection performance

1500 m3/hour

Power requirements

220 V, 50 Hz

Maximum power consumption

2,5 кW

FAQ

Do you conduct machine installation and training?

Yes, we do. Upon the client’s request, our specialists perform installation work and provide training on the basics of machine operation and creating toolpaths.

Can I purchase the machine without the stand?

During the development of the ATS-0609 machine we included the possibility of operating it without a stand. The machine can be purchased with or without the stand at the customer’s choice.

Is there post-warranty support and maintenance available?

We provide post-warranty support and service for all our machines. Mechanical and electrical parts used in our machines are always in stock.

Can a 4th axis be added later on?

To effortlessly install a 4th axis (such as a rotary axis) later on, we recommend ordering the “preparation for the 4th axis” option along with the machine.

Do you offer shipping?

Depending on the region of Ukraine, we provide equipment shipping through our transportation or other courier companies. We have also developed turnkey solutions for overseas businesses.

Which control system should I choose?

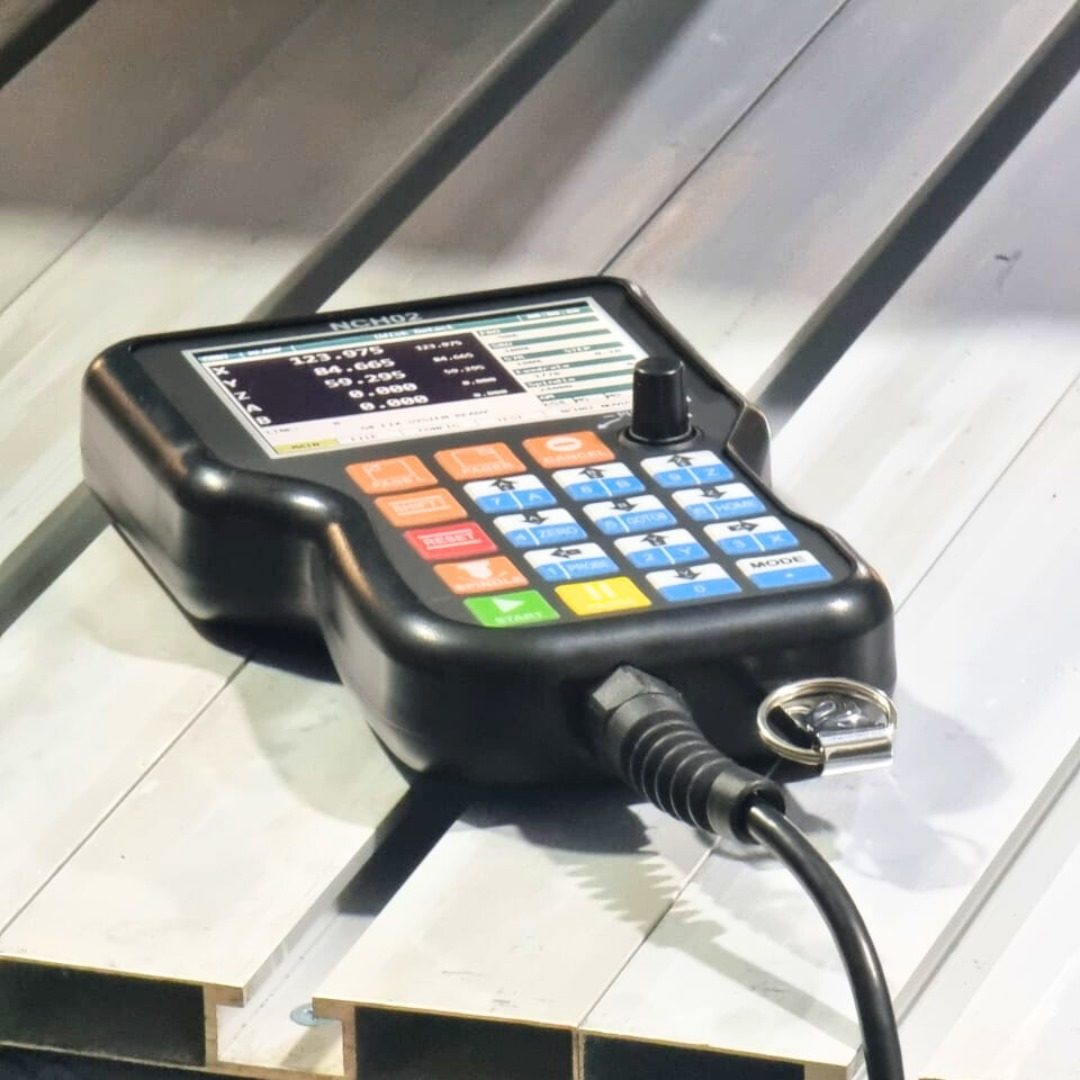

The ATS-0609 can be operated with two types of controllers: 1. DSP controler; 1. NC Studio CNC system. The advantages of the DSP controller its compact size, simplicity, and ease of use, as well as the fact that there is no need to purchase a PC. The disadvantages of DSP controller include limited screen informativeness and fragility (it may malfunction if dropped). The NC Studio CNC system, when used with a PC, significantly reduces programming time and minimizes the risk of errors. However, it does require a computer system unit with a 32-bit Windows operating system.

How do you create toolpaths for the machine?

Various CAM software allows the creation of toolpaths, such as V-Carve, ArtCAM, Rhinoceros, Deskproto, etc. We recommend considering using toolpath generation features within CAM software. We also offer a comprehensive training course on how to utilize these toolpath features effectively.

How is a CNC machine bed processed?

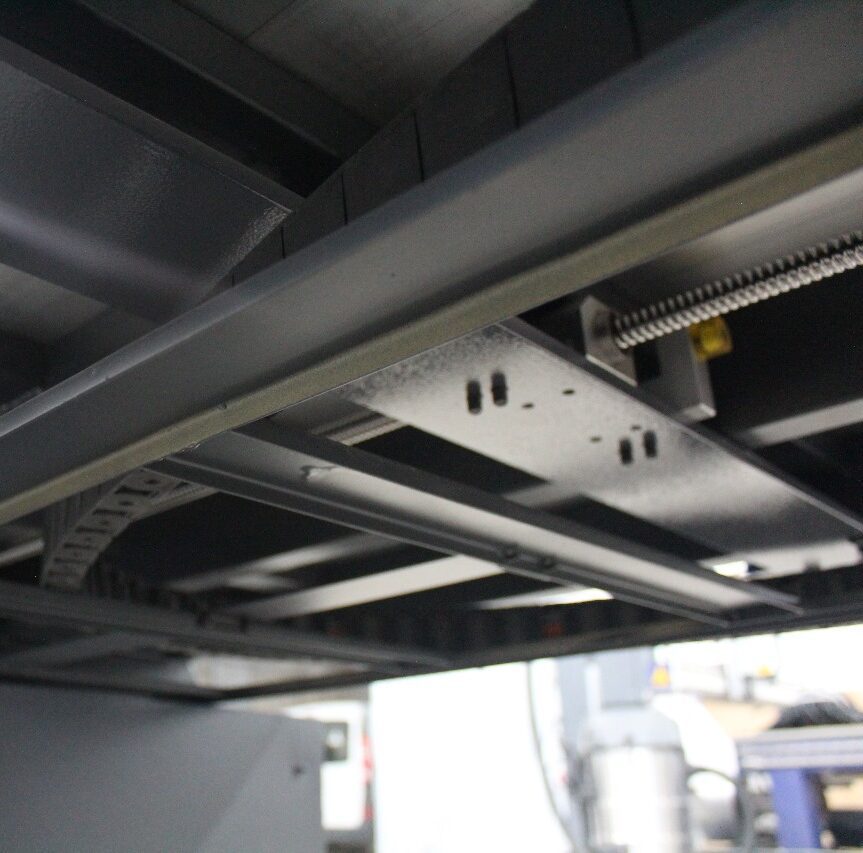

A CNC machine bed is welded from steel profile pipes and constitutes a solid welded structure. All mounting locations for linear guides and ball screws are machined in one setup on a gnatry type CNC milling machine.

Get New Quote Today

The machine can be produced in various modifications and equipped with options of your choice.
