TwinCut CNC machine
Close cooperation with our clients and the desire to meet their production needs contributed to the development of the TwinCut series of machines. This is one of our products, initially optimized for the production of facade systems which were later found to be used in other industries.
Due to the well thought-out design and the use of optimal components, TwinCut CNC machines combine high performance and wide functionality with an affordable price.

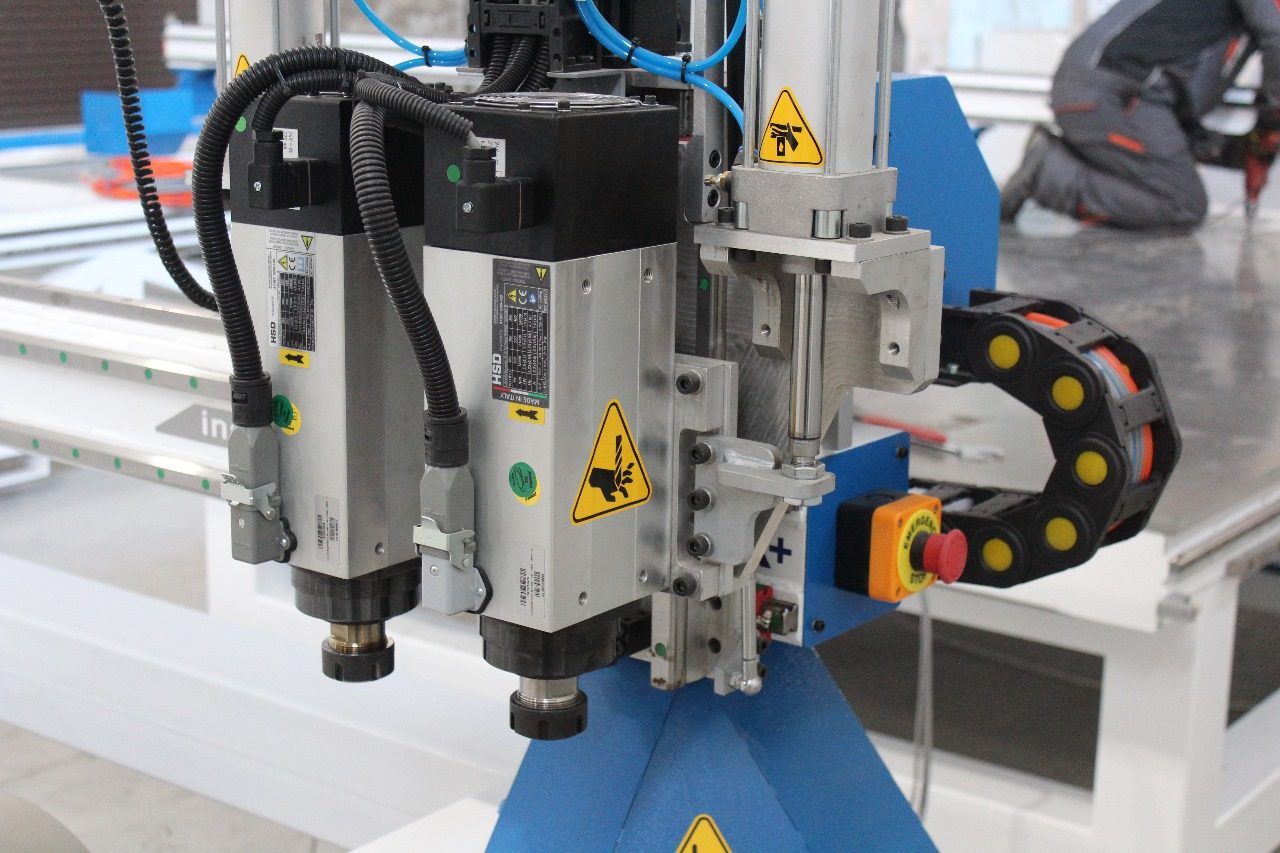

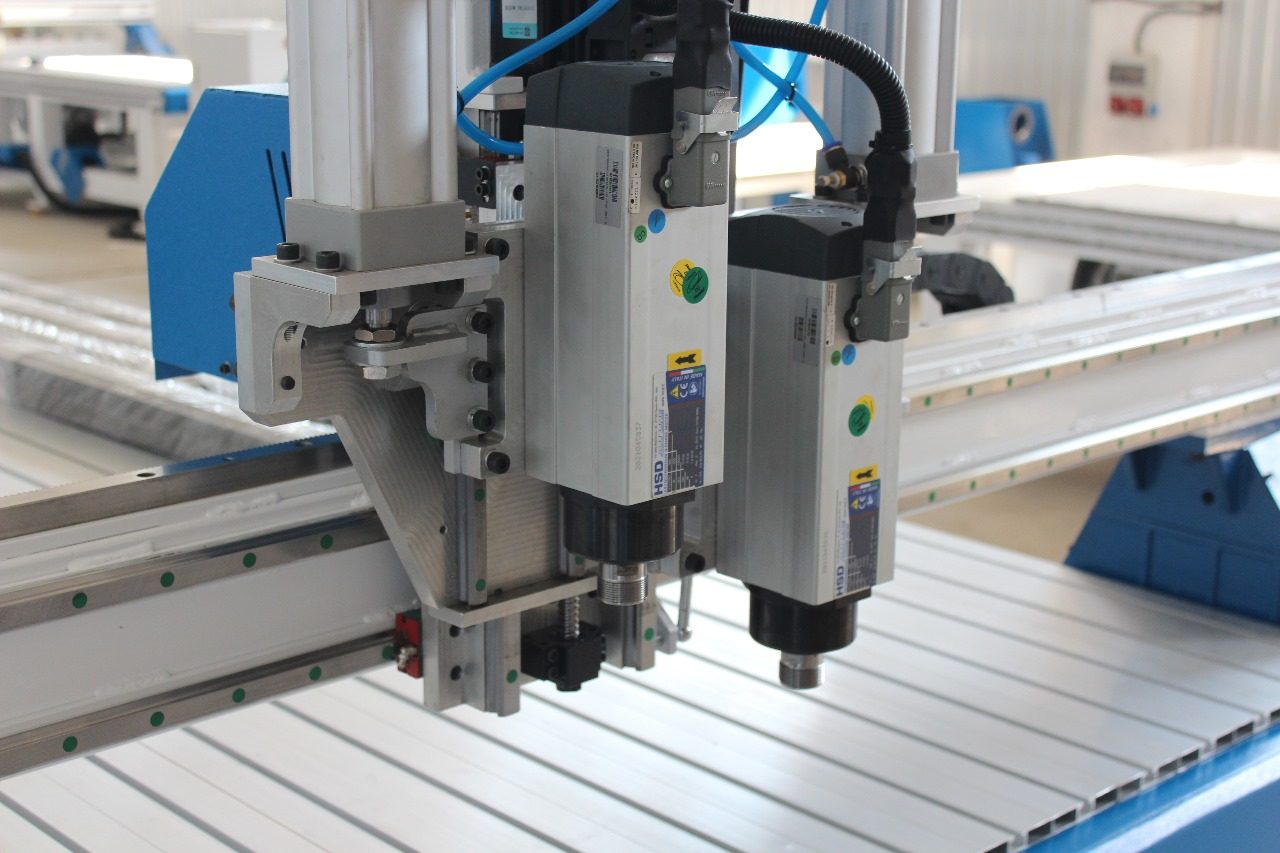

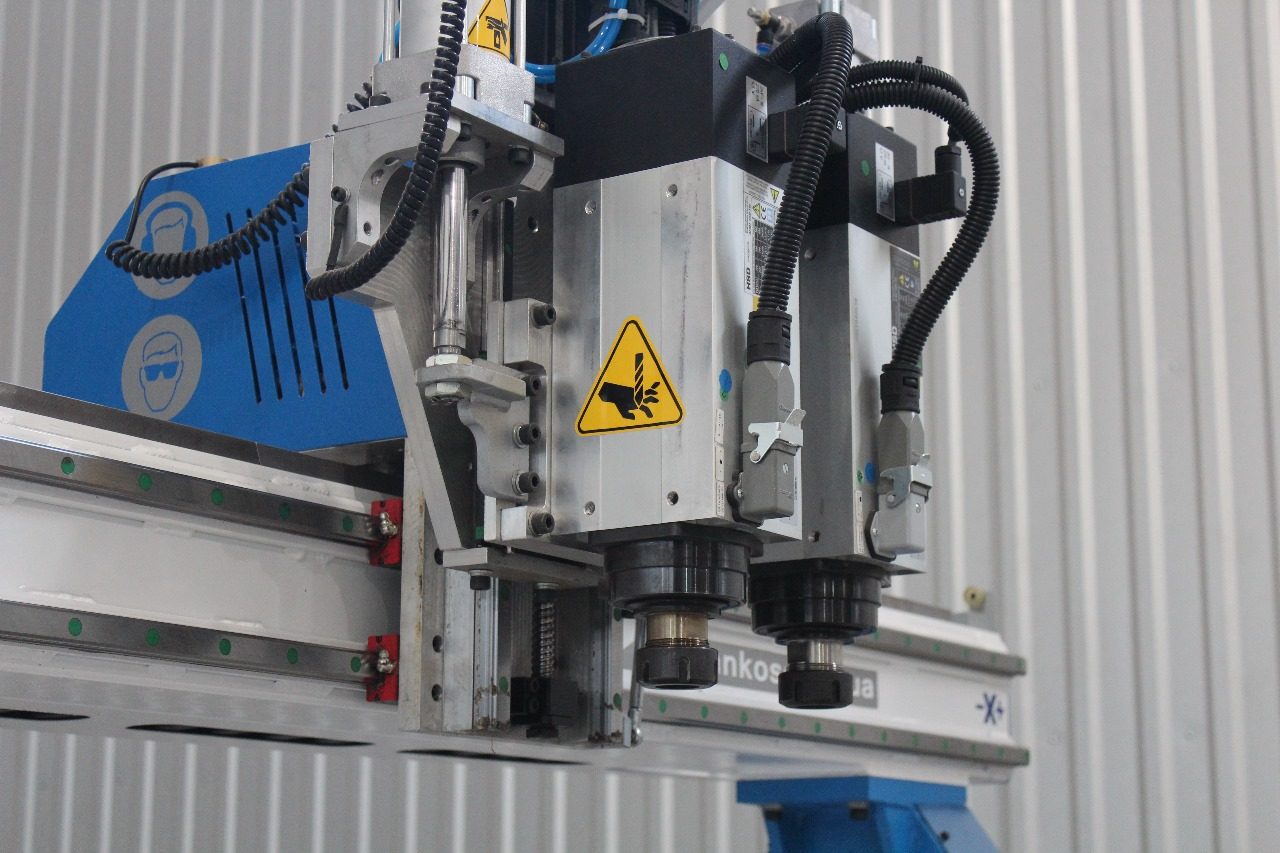

Two electric spindles of the machine can be used to process one workpiece with two different tools and to jointly execute the same type of processing in the manufacturing process of a large number of products.
-
Quality components
During the production of CNC machines, we use only high-quality brand components. They guarantee the accuracy, reliability and long-term operation of CNC routers
-
Professional production
During the existence of the company, we have established ourselves as a professional production that is actively developing and working on the modernization of equipment and the creation of new models of machines
-
Reliable spindle
Our machines use high-quality spindles from the world’s leading manufacturers with liquid and air cooling. They ensure the accuracy of material processing
-
Simple controls
CNC machines are easy to use and have an intuitive interface and control system that allows you to quickly and efficiently meet your production goals
-
Software
We use exclusively professional and licensed software that guarantees efficient machine control and minimizes the risk of malfunctions
-
Service
We provide expert advice and assistance in selecting equipment for your needs and commissioning works. We also ensure the best terms for training and CNC machine maintenance
-
Guarantee
The guarantee for all CNC machines is one year. We also provide post-warranty technical support and equipment maintenance throughout our machines’ period of operation
-
Industrial manufacturing
Manufacturing of CNC machine tools takes place at our production base using precise equipment and careful observance of all the processes and standards of machine tool construction
Information
Information
The TwinCut model has two spindles for quick automatic tool changing, allowing for convenient and fast processing of various materials.
Advantages of the model
- Two working spindles
- High productivity
- Additional options
- Sturdy construction
- Fast and reliable operation
- User-friendly control system
Worktable size
Y-3100, X-2100, Z-200
Materials that can be processed
- Composite materials (Dibond and Alucobond)
- Wood (timber, plywood, MDF, particle board, birch, walnut, etc.)
- Plastics (acrylic, Plexiglas, polycarbonate)
- Soft metals (aluminum, brass, copper)
Application areas
- Production of facade systems
- Furniture production
- Outdoor advertising production
- Production of commercial equipment
Construction

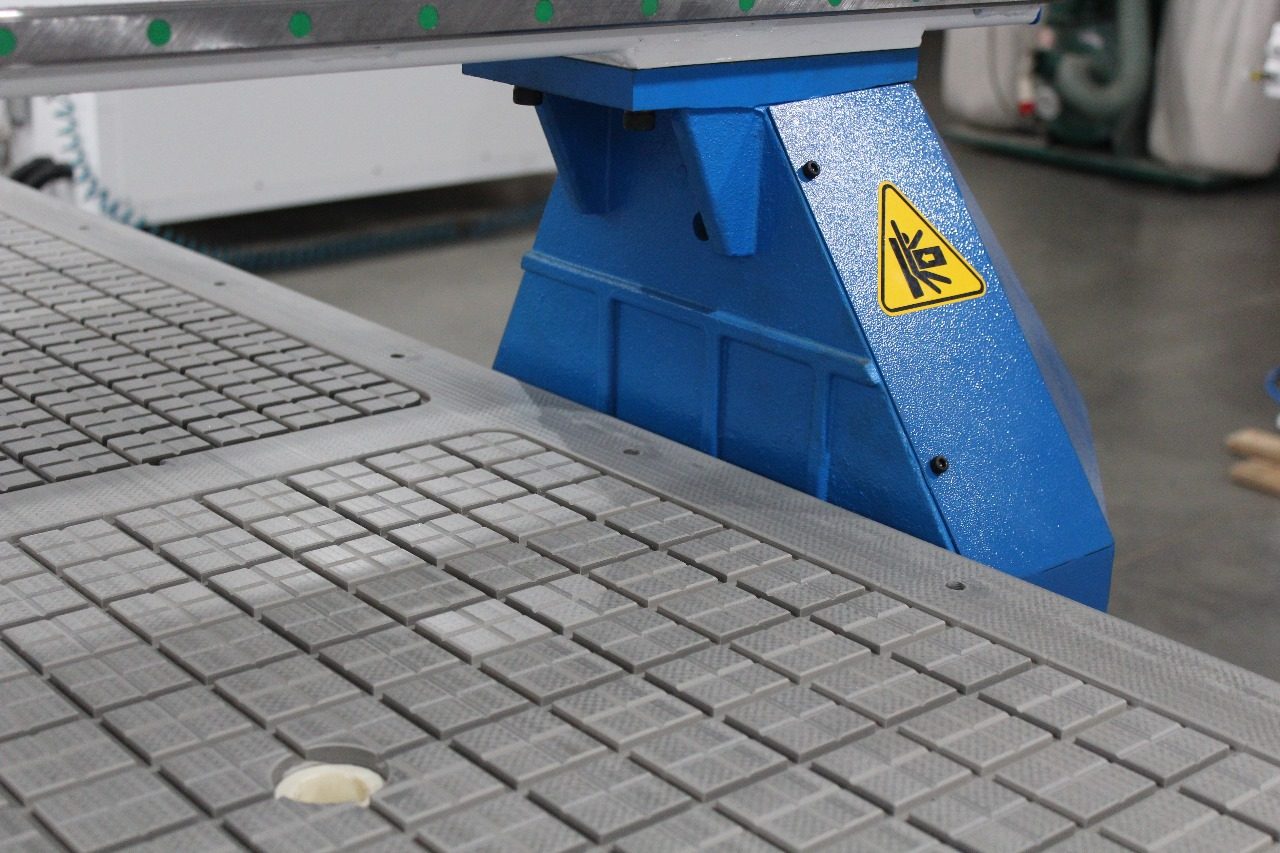

The machine’s solid welded frame is made of steel profile tubes. The portal supports are made of cast iron to avoid excessive vibrations during processing. To ensure the quality of the machine parts, they are processed on modern CNC metalworking equipment.
A modern industrial CNC controller operates the machine.
Оptions
Specifications
Table work area (Y×X)
3100×2100 mm
Axes travel (Y×X×Z)
3100×2100×200 mm
Machine dimensions (L×W×H)
3800×2800×1700 mm
Machine weight
1200 кg
Machine type
CNC router
Construction
Moving gantry
Spindle nut to table clearance
200 mm
Gantry clearance
200 mm
Worktable with mechanical workpiece fixturing
Profiled aluminum (T-slot)
Linear guide rails
Precision linear guideway
Z axis feed
Ball screw drive
X, Y axes feed
Helical rack

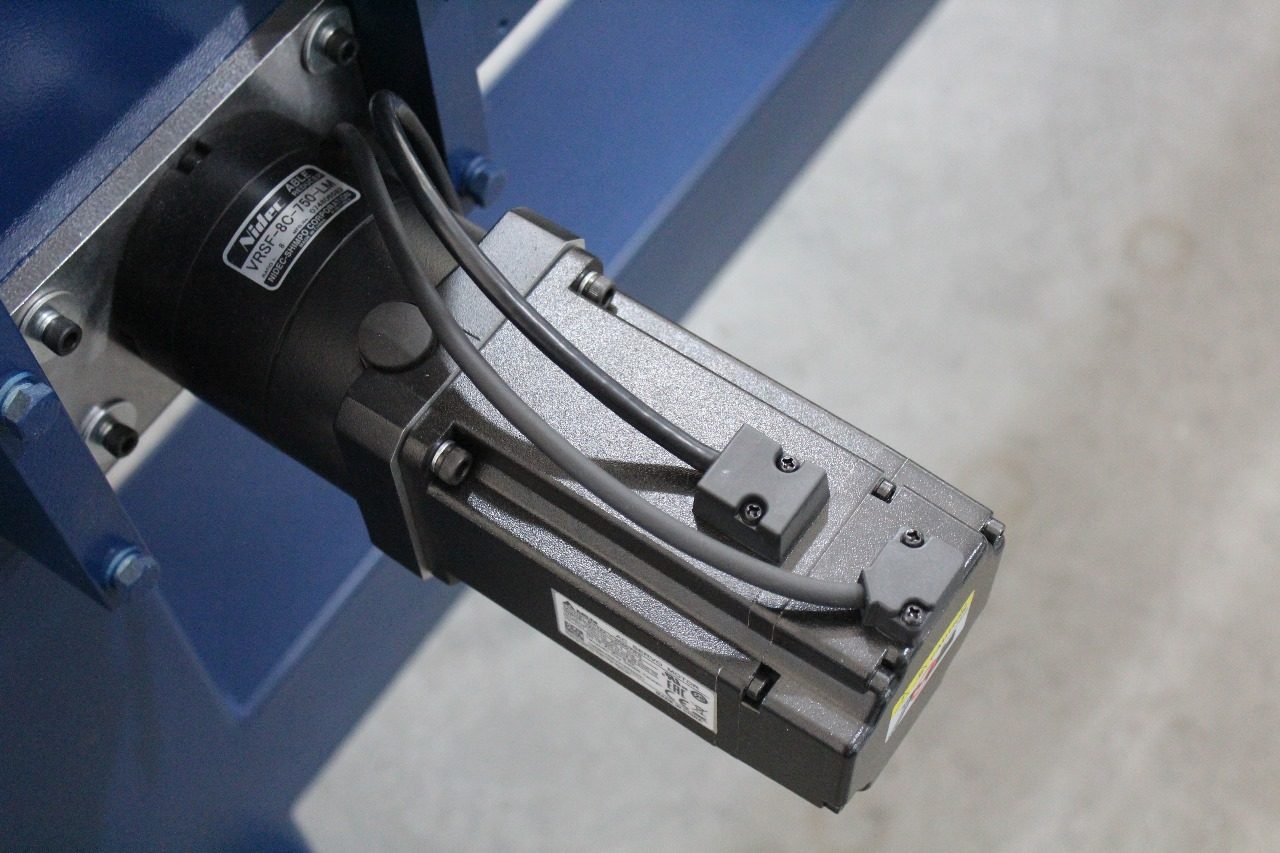

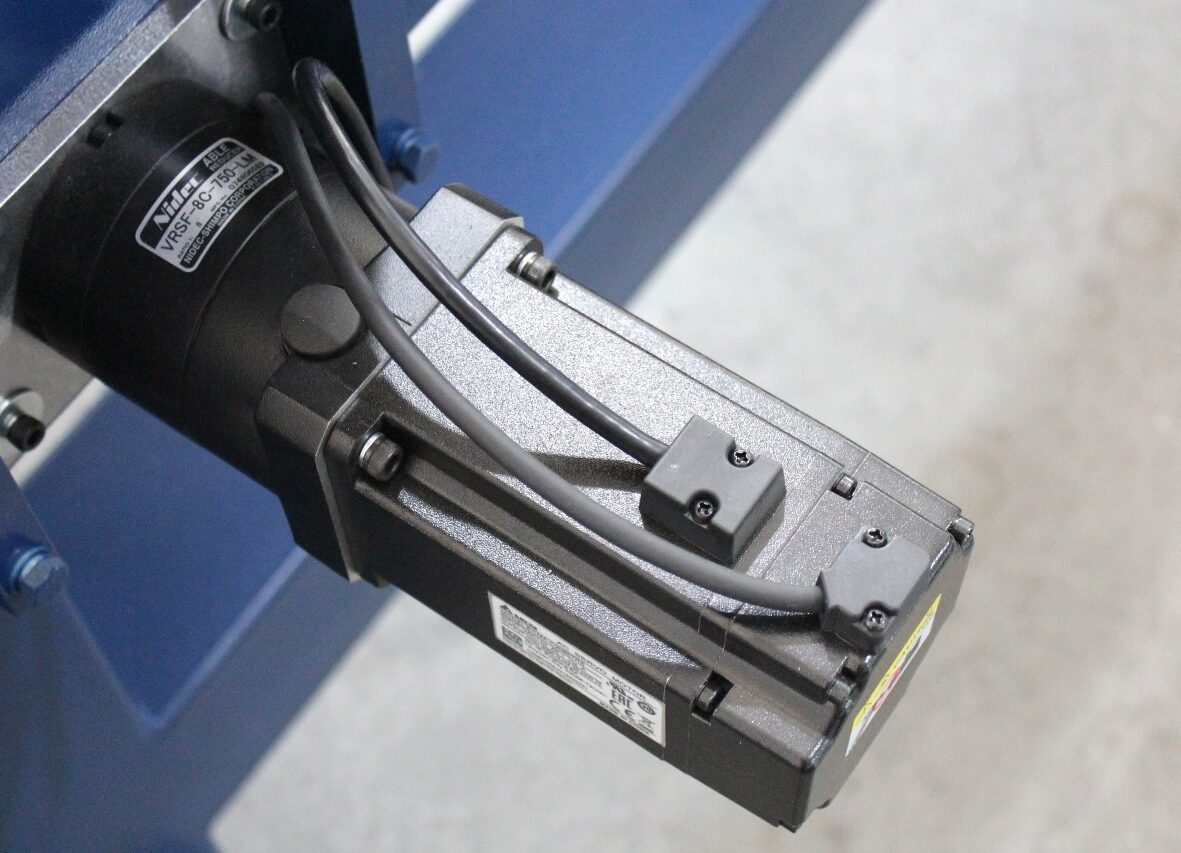

Reducer type of X, Y axes
Toothed belt
X, Y, Z axes motors
Stepper motor
Maximum traverse speed, axis Z
6 m/min
Maximum traverse speed, axes X,Y
20 m/min
Work feed rate up to
15 m/min
Spindle power
3.5 кW
Number of spindles
2 pcs
Spindle speed
6 000-18 000 rpm
Spindle cooling type
Air
Tool change
Manual
Collet type
ER25
Maximum Ø of shank
16 mm
Tool length measurement sensor type
Contact
Limit switches
Inductive
Control system (CNC)
NC Studio v8
Programming language
G-Code
Dust collection port Ø
100 мм
Recommended dust collection performance
3200 m3/hour
Power requirements
380 V, 50 Hz
Maximum power consumption
8 кW
FAQ
Do you conduct machine installation and training?
Yes, we do. Upon the client’s request, our specialists perform installation work and provide training on the basics of machine operation and creating toolpaths.
What is the speed of the working spindles change?
By default, the TwinCut machines are equipped with two working spindles, which operate sequentially. The spindle change speed, considering the time required to stop the first spindle and start the second one, is 12 seconds.
What is the working area for a single spindle?
The TwinCut machines are specially designed to allow one spindle to process the entire working area specified in the technical specifications. In other words, if the stated working area is 2500×1300 mm, then either of the two spindles can process this area.
What kind of compressor is necessary for a CNC machine?
An additional compressor is required for machines with automatic tool change. For stable and proper operation, a compressor capable of maintaining pressure at the machine’s input of 8-10 bar and having a productivity of 420 normal litres per minute is necessary. The preferred volume of the compressor’s receiver should be at least 200 litres.
How do you create toolpaths for the machine?
Various CAM software allows the creation of toolpaths, such as V-Carve, ArtCAM, Rhinoceros, Deskproto, etc.
We recommend considering using toolpath generation features within CAM software. We also offer a comprehensive training course on how to utilize these toolpath features effectively.

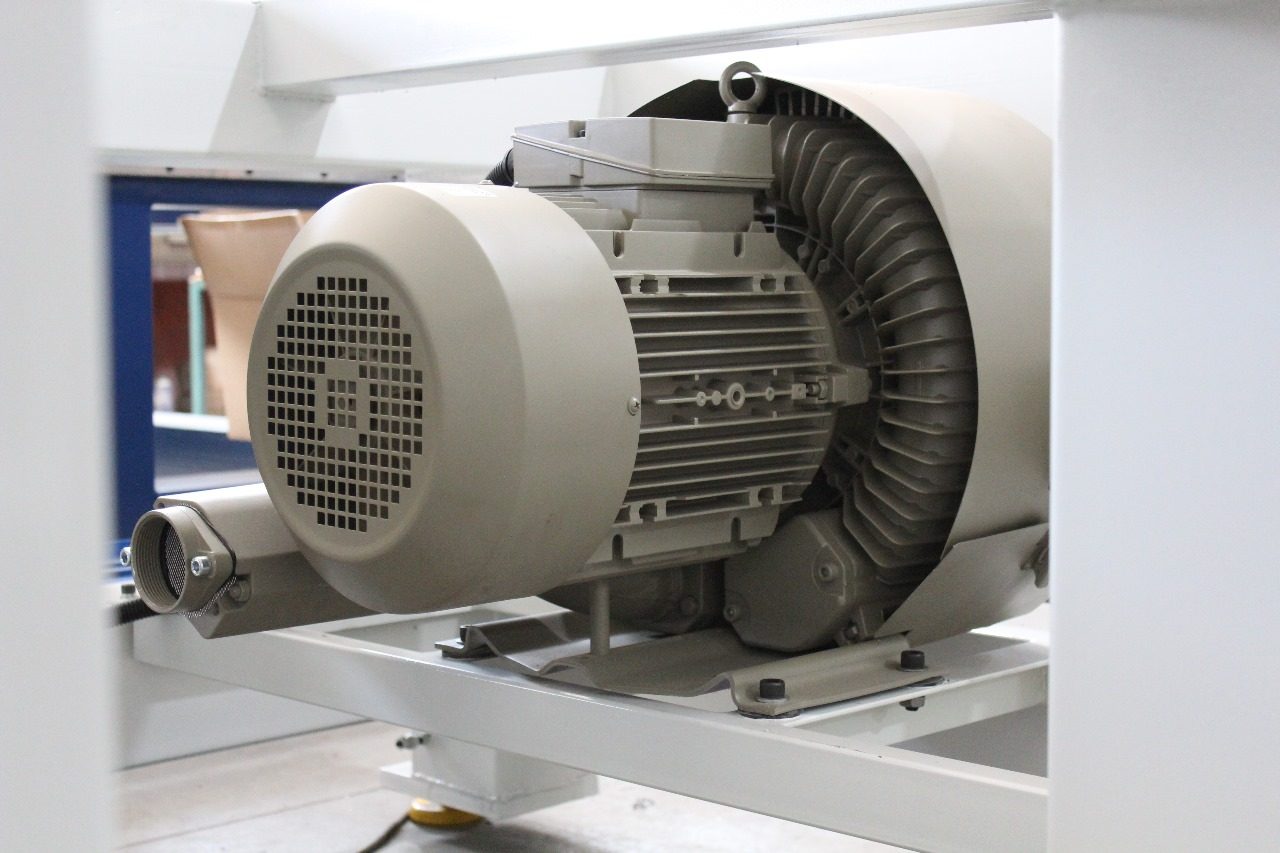

How can I control the vacuum table?
The vacuum table of a CNC machine is divided into several vacuum zones, which can be controlled in two ways:
- Mechanical valves on the machine’s front panel open/close the air supply to the vacuum zone.
- Electric valves are controlled by pressing the corresponding buttons.
How do you protect a CNC machine from power surges?
As the manufacturer, we also recommend installing a voltage stabilizer at the CNC machine’s input to ensure stable operation and avoid issues related to power surges.
Is there post-warranty support and maintenance available?
We provide post-warranty support and service for all our machines. Mechanical and electrical parts used in our machines are always in stock.
