PrimeCut

The machine is the top version among the CNC machines of the ATS series, which uses modern engineering technologies.

  • Quality components

    During the production of CNC machines, we use only high-quality brand components. They guarantee the accuracy, reliability and long-term operation of CNC routers

  • Professional production

    During the existence of the company, we have established ourselves as a professional production that is actively developing and working on the modernization of equipment and the creation of new models of machines

  • Reliable spindle

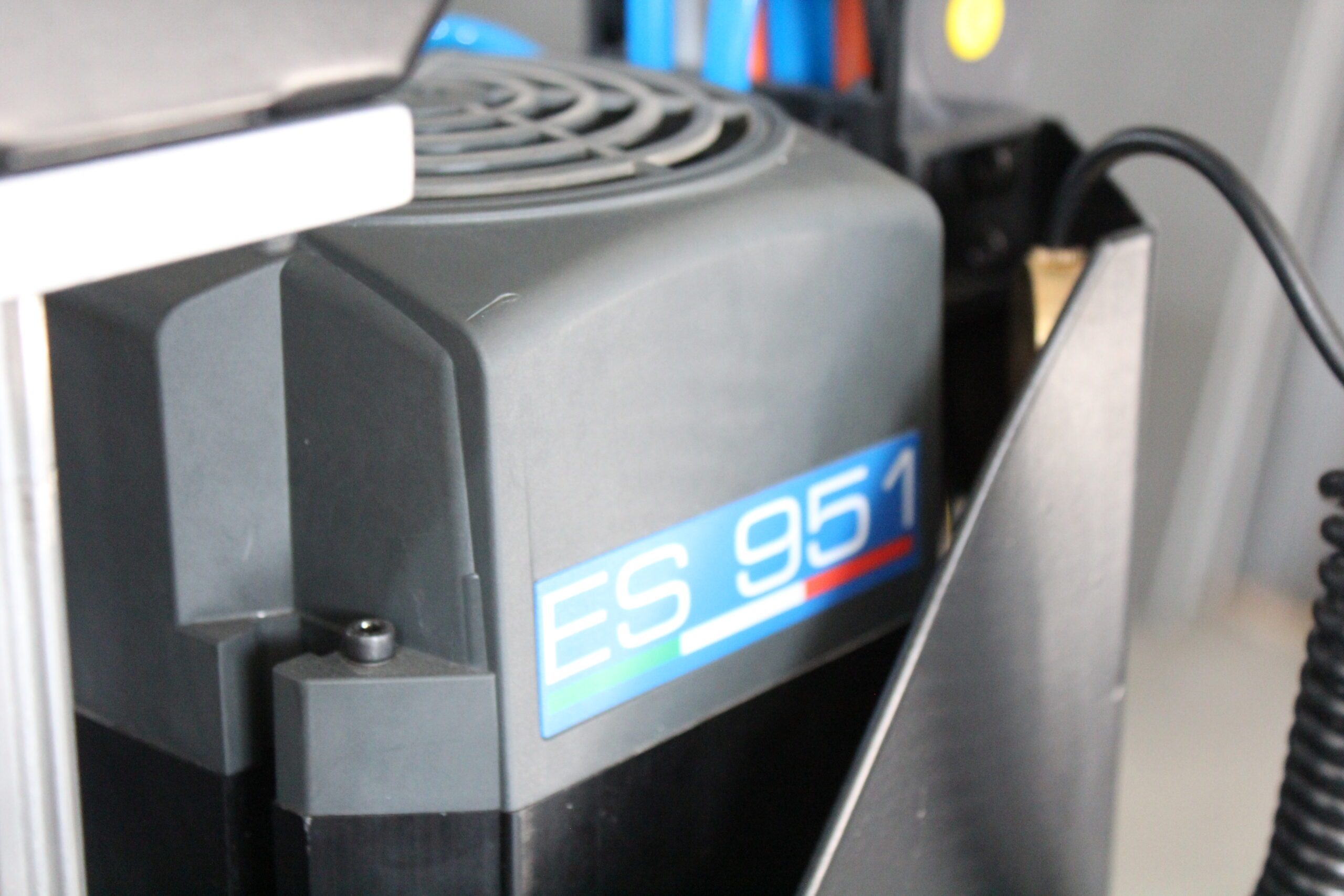

    Our machines use high-quality spindles from the world’s leading manufacturers with liquid and air cooling. They ensure the accuracy of material processing

  • Simple controls

    CNC machines are easy to use and have an intuitive interface and control system that allows you to quickly and efficiently meet your production goals

  • Software

    We use exclusively professional and licensed software that guarantees efficient machine control and minimizes the risk of malfunctions





  • Service

    We provide expert advice and assistance in selecting equipment for your needs and commissioning works. We also ensure the best terms for training and CNC machine maintenance

  • Guarantee

    The guarantee for all CNC machines is one year. We also provide post-warranty technical support and equipment maintenance throughout our machines’ period of operation



  • Industrial manufacturing

    Manufacturing of CNC machine tools takes place at our production base using precise equipment and careful observance of all the processes and standards of machine tool construction

Information

Information

The PrimeCut machine is a premium model because it incorporates and refines the best technological solutions from all our company’s CNC router models.

Advantages of the model

  • High productivity
  • Additional options
  • Sturdy construction
  • Fast and reliable operation
  • User-friendly control system

Worktable size

Y-2500, X-1300, Z-200*

*Possible increase of Z-axis travel up to 300 mm

Materials that can be processed

  • Wood (timber, plywood, MDF, particle board, birch, walnut, etc.)
  • Plastics (acrylic, Plexiglas, polycarbonate)
  • Composite materials (Dibond and Alucobond)
  • Soft metals (aluminum, brass, copper)

Application areas

  • Furniture production
  • Production of 3D decorations
  • Outdoor advertising production
  • Model building
  • Production of commercial equipment
  • Making press molds

Construction

The machine’s solid welded frame is made of steel profile tubes. The portal supports are made of cast iron to avoid excessive vibrations during processing. To ensure the quality of the machine parts, they are processed on modern CNC metalworking equipment.

A modern industrial CNC controller operates the machine.

Опції

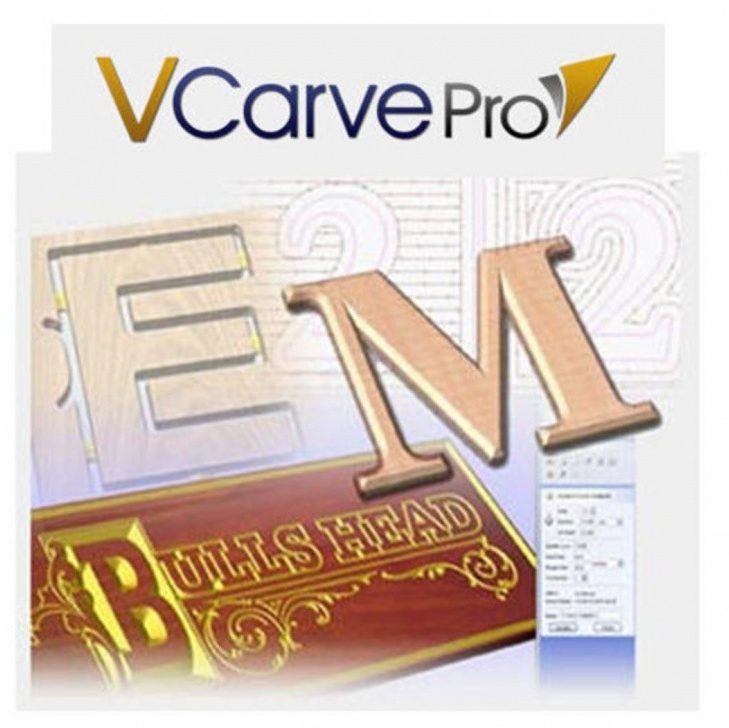

VCarve Pro software

The VCarve Pro software offers various tools and options for creating control programs for CNC machines, including cutting, milling, engraving, and processing of flat and three-dimensional surfaces.

Rotary axis

It is used for manufacturing cylindrical-shaped products and for processing parts from multiple sides. The maximum processing diameter of workpiece is 100(200) mm. To control a machine with a rotary axis, a CNC controller with four independently controlled axes is required.

Extraction system

The primary purpose of the system is to remove dust, smoke, gases, and harmful substances generated during laser cutting. This system may also include extraction devices, filters, fans, and other components to maintain a clean and safe air environment in the working area.

Specifications

Table work area (Y×X)

2500×1300 mm

Axes travel (Y×X×Z)

2500×1300×200 mm

Machine dimensions (L×W×H)

3200×2500×1700 mm

Machine weight

1000 кg

Machine type

CNC router

Construction

Moving gantry

Spindle nut to table clearance

200 mm

Gantry clearance

200 mm

Worktable with mechanical workpiece fixturing

Profiled aluminum (T-slot)

Linear guide rails

Precision linear guideway

Z axis feed:

Ball screw drive

X, Y axes feed

Helical rack

Reducer type of X, Y axes

Toothed belt

X, Y, Z axes motors

Stepper motor

Maximum traverse speed, axis Z

6 m/min

Maximum traverse speed, axes X,Y

20 m/min

Work feed rate up to

15 m/min

Spindle power

7.5 кW

Spindle speed

6 000-24 000 rpm

Spindle cooling type

Air

Tool change

Automatic

Tool magazine type

Disk

Tool holder type

ISO30

Tool magazine size

8 pcs

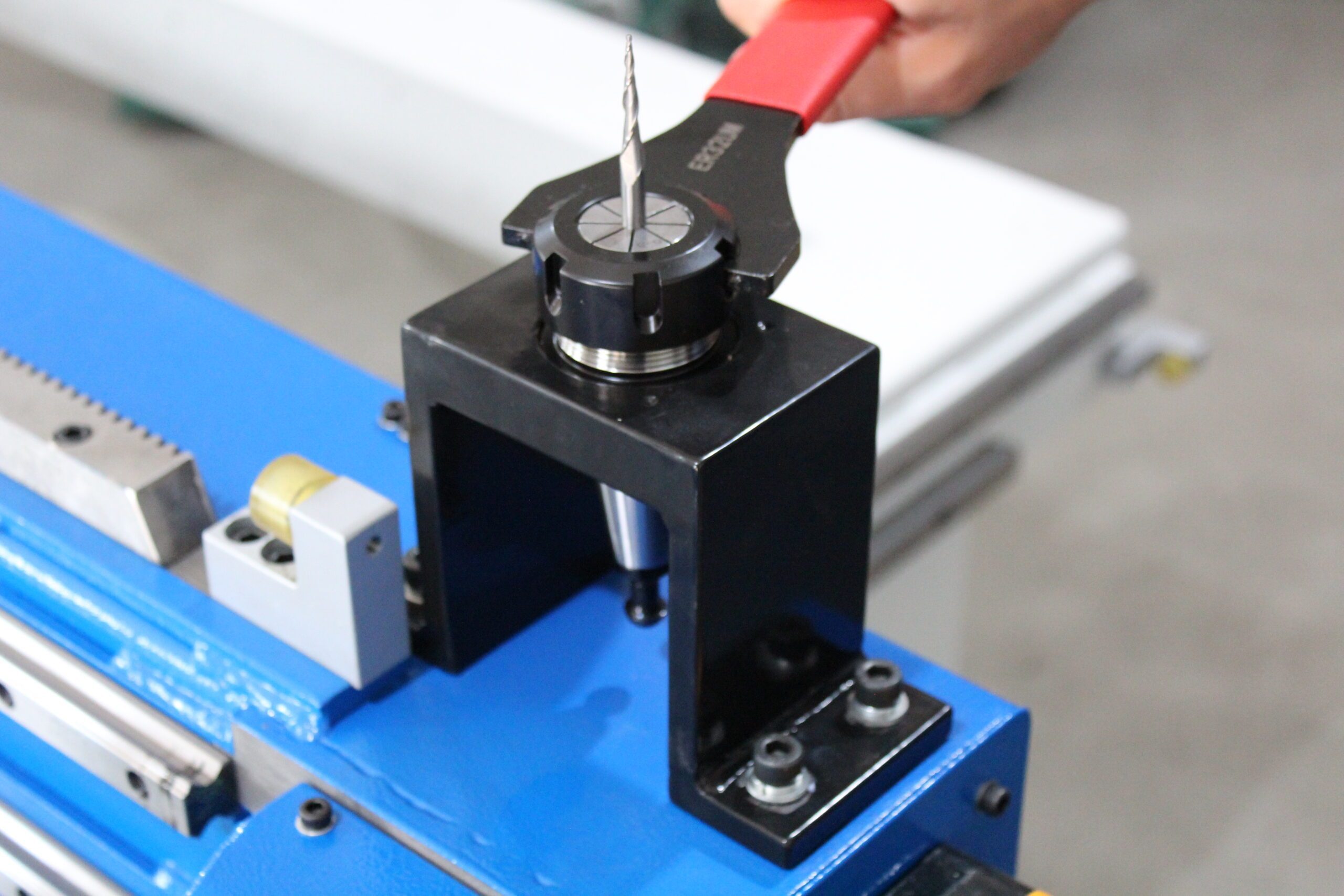

Collet type

ER32

Maximum Ø of shank

20 mm

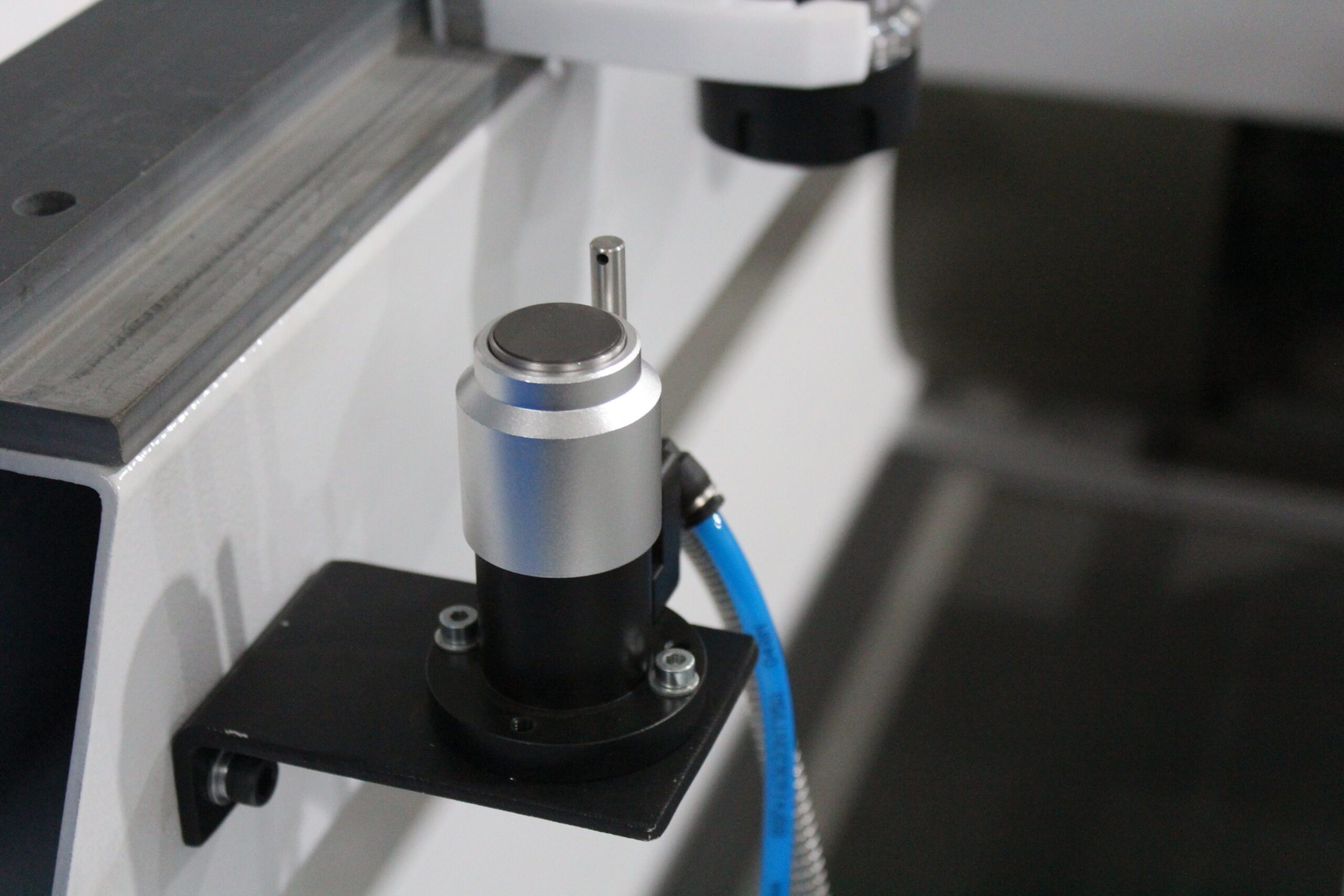

Tool length measurement sensor type

Contact

Limit switches

Inductive

Control system (CNC)

NC60A

Programming language

G-Code

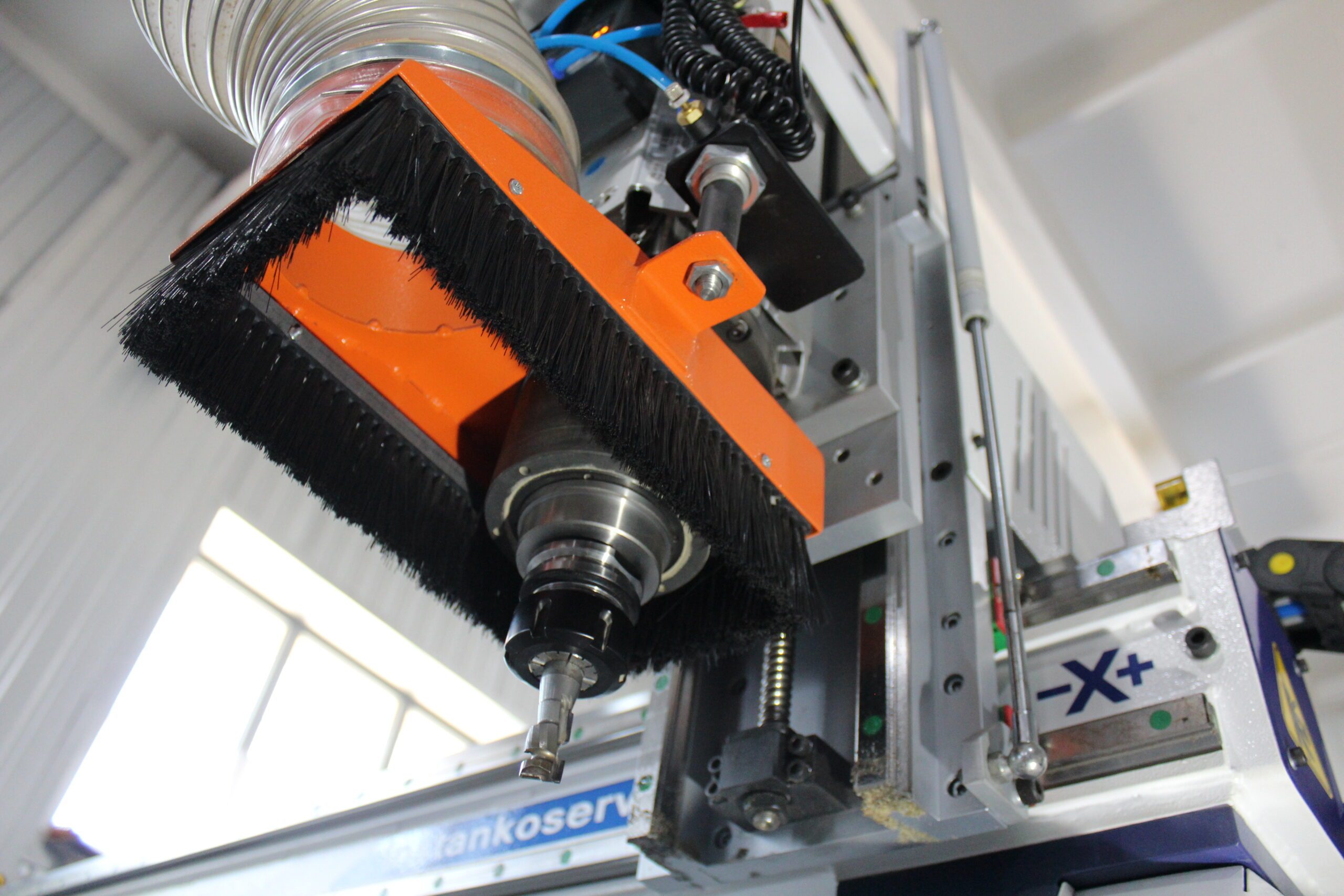

Dust collection port Ø

100 mm

Recommended dust collection performance

3200 m3/hour

Power requirements

380 V, 50 Hz

Maximum power consumption

10 кW

FAQ

Do you conduct machine installation and training?

Yes, we do. Upon the client’s request, our specialists perform installation work and provide training on the basics of machine operation and creating toolpaths.

What are the advantages of a disk tool changer?

The advantage is the speed of tool change. Unlike a linear-type magazine, a disk-type magazine is located on the machine’s gantry, closer to the spindle. This positioning significantly saves time during tool changes, especially for large-format machines.

Is it possible to use HSK tool holders?

We recommend equipping the machine with a spindle that works with an HSK tool holder for large-diameter milling cutters. Our company installs two types of spindles with Automatic Tool Change Interface: those compatible with ISO tool holders or with HSK 63F tool holders. The spindle is selected according to the customer’s requirements.

What is the maximum number of tools in the tool magazine?

The base configuration of a CNC machine includes four interchangeable tools in the tool magazine. We can increase the tool magazine size up to seven tools without any structural modifications. However, a change in the linear magazine’s layout is required to accommodate even more tools.

What mechanism is used for rotating the disk tool changer?

There are three types of mechanisms for rotating the carousel:

  1. Belt-driven gearbox;
  2. Geneva mechanism;
  3. Planetary gearbox.

Our company utilizes the third type of mechanism. Rotation is achieved using a planetary gearbox paired with a servo motor. This system is the most efficient and has no drawbacks associated with the previous mechanisms.

Which ATC spindle should I choose?

Our company uses spindles from both Italian and Chinese manufacturers in machines with automatic tool change.

The advantages of Italian spindles are precision manufacturing, long service life (at least five years), and repairability. The downside of such a spindle is its high cost.

The advantage of Chinese spindles is their low cost, while the downside is their shorter service life compared to Italian manufacturers.

What kind of compressor is necessary for a CNC machine?

An additional compressor is required for machines with automatic tool change. For stable and proper operation, a compressor capable of maintaining pressure at the machine’s input of 8-10 bar and having a productivity of 420 normal litres per minute is necessary. The preferred volume of the compressor’s receiver should be at least 200 litres.

Is a PC required for the machine?

An industrial computer controls CNC machines with automatic tool change, which is integrated into the machine’s control system. Therefore, a PC is not required for such machines.

Get New Quote Today

The machine can be produced in various modifications and equipped with options of your choice.
We can help you choose the optimal machine for your projects. Get Pricing Info & Have Our Machine Quick Reference Guide E-Mailed To You Today!
